Automatic Rewinding Machine

A rewinding machine is a machine designed for making the unwinding edge straight, slitting the big roll to small rolls.
  • Brand:

    Lingtie
  • Item NO.:

    LTD-600B
  • Market Price:

    $4500
  • Shipping Port:

    Xiamen
  • Lead Time:

    10 days after 30 % deposit
Product Detail

Quick Details

Place of Origin:
Fujian, China
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant.....
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Brand Name:
Lingtie
Condition:
New
Warranty:
1 year
Model:
LTD-600C
Max. Paper width:
600mm
Allowable weight:
40kg
Max. diameter:
550mm
Power supply:
220v/1w
Net weight:
 300kg
Gross weight:
350kg Machine size:
L950*W1010*H112











Packaging & Delivery

Selling Units: Single item

Package Type: wooden boxes for sea transportation

Lead Time : 15 days after advanced payment.


Video Description

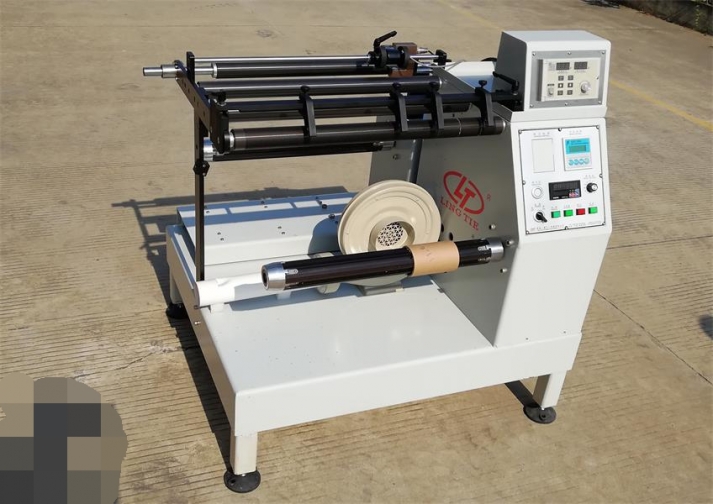

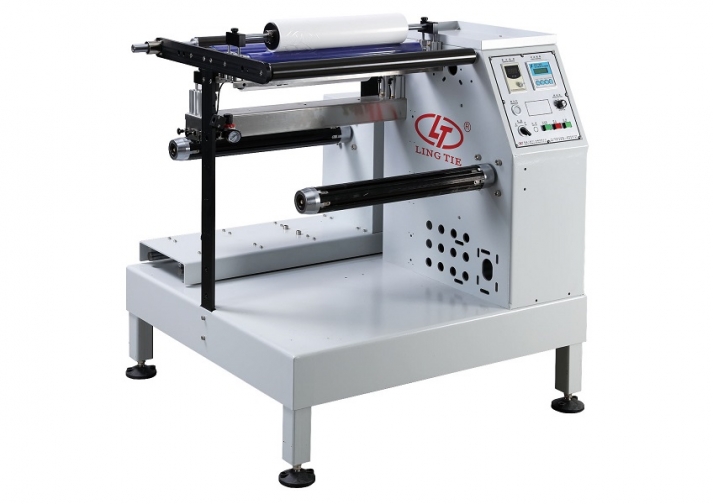

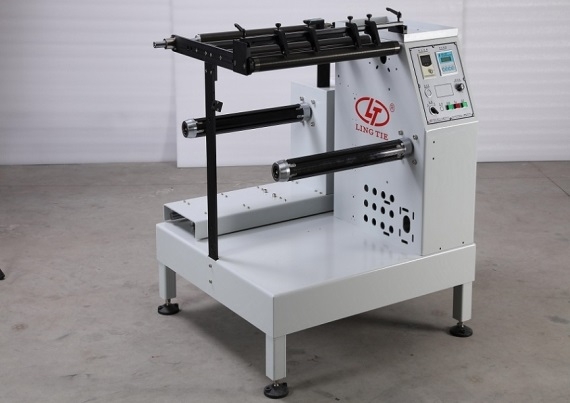

Automatic Rewinding Machine with Web Guide Introduction

1. Unwinding & rewinding air shaft 3" diameter.

2. Air shaft for max. roll width 600mm, max. roll diameter 500mm, max. roll weight 70kg.

3. Sensor adopted for web guide. It works for transparent and non-transparent materials.

4. Magnetic powder brake is used for tension control during rewinding process.

5. Machine automatic stop when the rewinding finish.

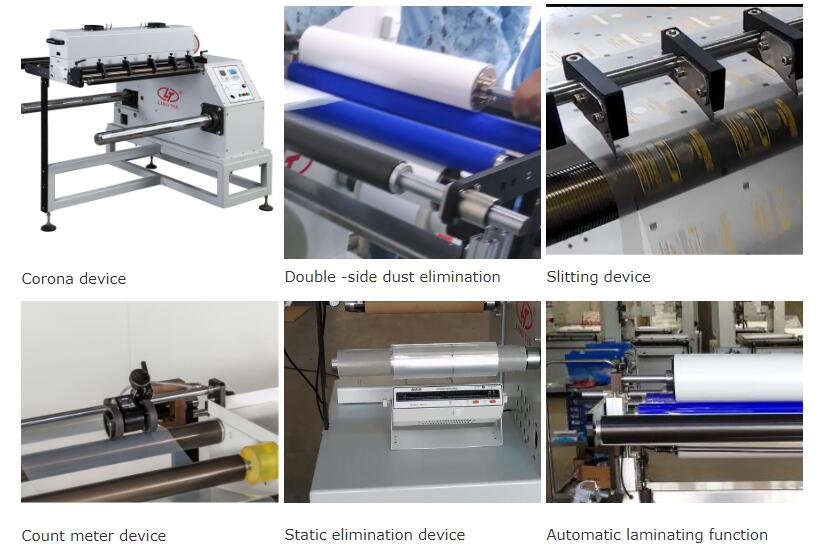

6. Count meter function, slitting function, dust cleaning function and corona function are available for option.



Model:                          LTD -600B

Maximum web width :   600mm

Power voltage:             220 V

Power:                          1 kw

Machine weight:           300 kg

Machine dimension:     950 x 1010 x 1120 mm



Application

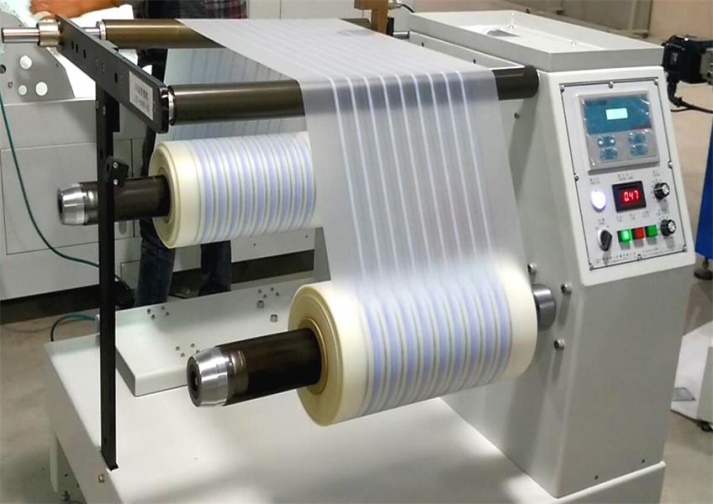

This automatic rewinding machine with web guide is widely used to rewind various soft materials in roll form, such as plastic film, paper, medical gauze, non-woven fabric , aluminum foil, etc.







Automatic Rewinding Machine with Web GuideAutomatic Rewinding Machine with Web GuideAutomatic Rewinding Machine with Web GuideAutomatic Rewinding Machine with Web GuideAutomatic Rewinding Machine with Web Guide
