Heat Transfer Label Screen Printing Machine

The Cost-optimal Heat Transfer Label Screen Printing Machine comes from the Lingtie (Xiamen ) Machinery manufacturer, it has 15 years of professional printing experience.
  • Brand:

    Lingtie
  • Item NO.:

    LTA-6080
  • Market Price:

    $54999
  • Product Origin:

    China
  • Shipping Port:

    Xiamen, China
  • Lead Time:

    20 days after received 30% payment
Product Detail

Product Name: Heat Transfer Label Screen Printing Machine

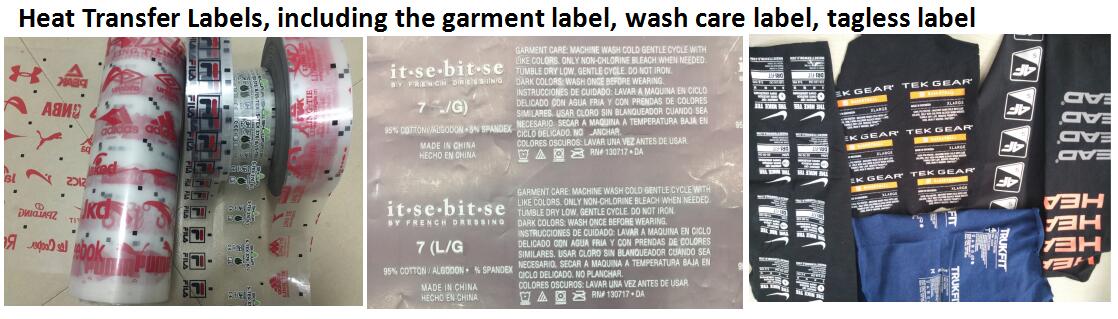

  • Heat Transfer Label Screen Printing Machine's content relates to thermal transfer label, wash care label, care label, tagless label and garment label screen printed on roll film or paper
  • Screen printing on roll films like PET, PVC, PC, BOPP or PP or Paper then transfer to garments and clothing
  • Not screen printing to garments and clothing directly,
  • The winding mechanism utilizes an advanced sonar sensor for accurately sensing the thinnest film
  • The film thickness range: 0.02--0.5mm
  • The film breadth range: 300-600mm

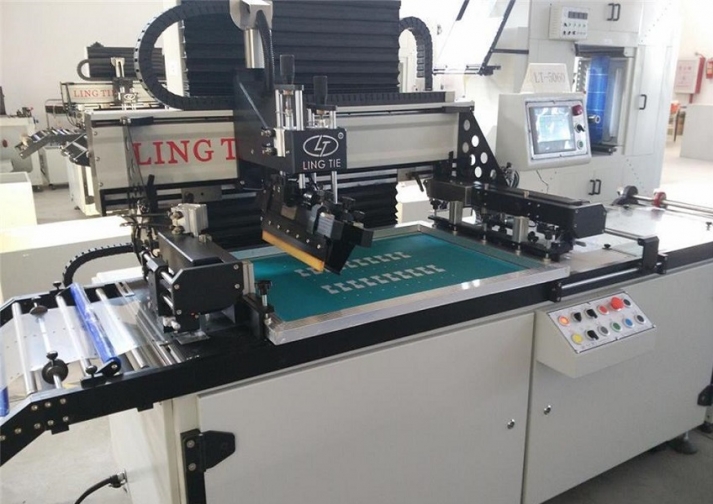

  •  A servo system drives an automatic registration control system features high speed, high precision positioning calculation (±0.01 mm), assuring positioning accuracy.
  • Precise alignment device (not contain automatic register ) travel employs a linear motor drive for outstanding overprint accuracy of ±0.01 mm.

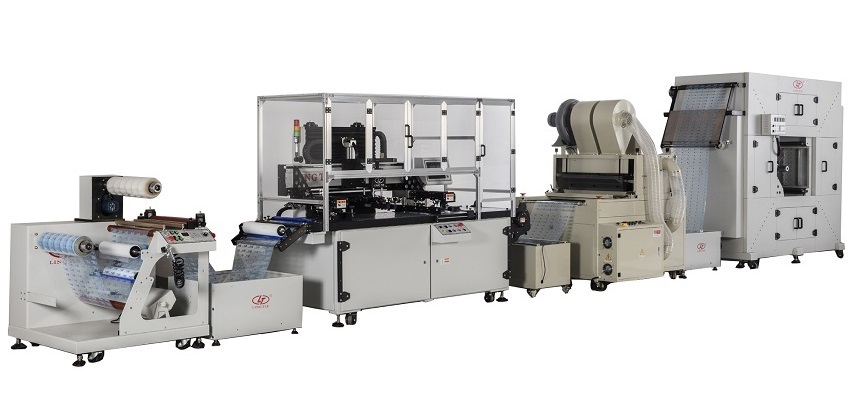

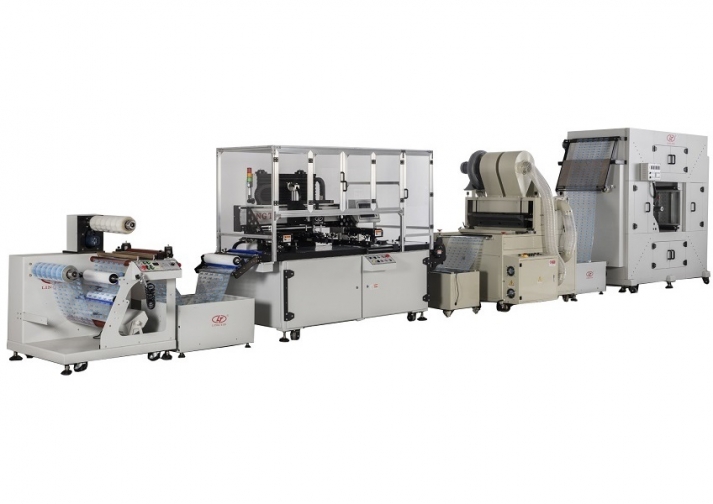

  • The machine consists of a feeding unit, a screen printer and a curing oven
  • Two dryers are available. Curing Oven (oven length: inner loop 30m,60m,80m ) and UV dryer with the cooling roller.


Specification:

 Model LTA-6080
 Max. Printing Size 600 x 800 mm
 Printing Speed  0~2500 print/hr
 Max. Screen Frame Size 900 x 1200 mm
 Frame Adjusting Variable 60mm
 Max. Substrate Width  620 mm
 Registration Accuracy ±0.01 mm
 Air Source 0.4~0.6 m pa
 Power 220 V, 3KW, 15 A
 Printing Material Thickness 0.02~0.5 mm
 Overall Dimensions 3150 x 1260 x 1650 mm (L*W*H)

The printing process of Heat transfer label  printing machine roll to roll
1.  sensor mark printing-- use for overprinting
2.  label pattern printing -- overprint how many times according to the label type
3. transparent ink printing --resist deformation
4. glue printing ---use to stick the pattern and cloth


The FAQ of the heat transfer label printing machine manufacturer

1, How much printing accuracy can be achieved?

  • We can reach 0.01 mm overprint precision
2, How many colors do you machine can print?
  • We can print 1 color, 2 colors, 3 colors, 4 colors, 5 colors, 6 colors, 7 colors and more.
3, What's your printing speed?
  • 10-20 meters /minuter in generally, 600-1200 meters / Hour.
4, What's the power consumption of this roll to roll printing machine system?
  • It's about 40 KWH /day,  working 8 hours
5, Could you supply the training by your side?
  • Yes, we  supply Free Training and Installation overseas, but the round airplane ticket is on your side
6, Are you a manufacturer or a distributor?
  • We are a professional manufacturer for 15-years in China.

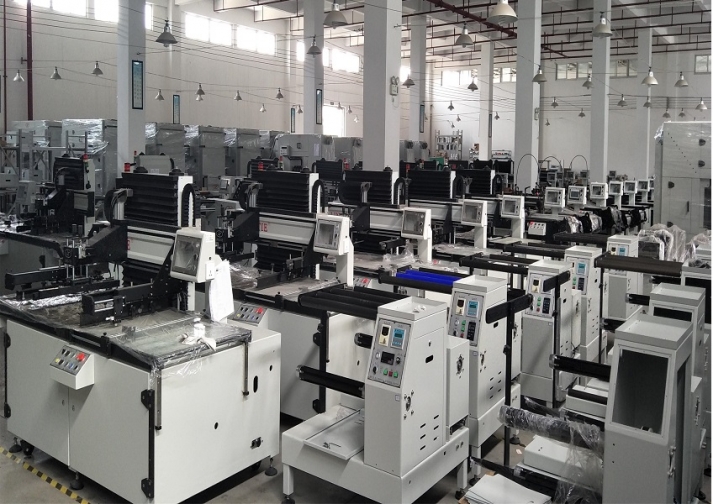

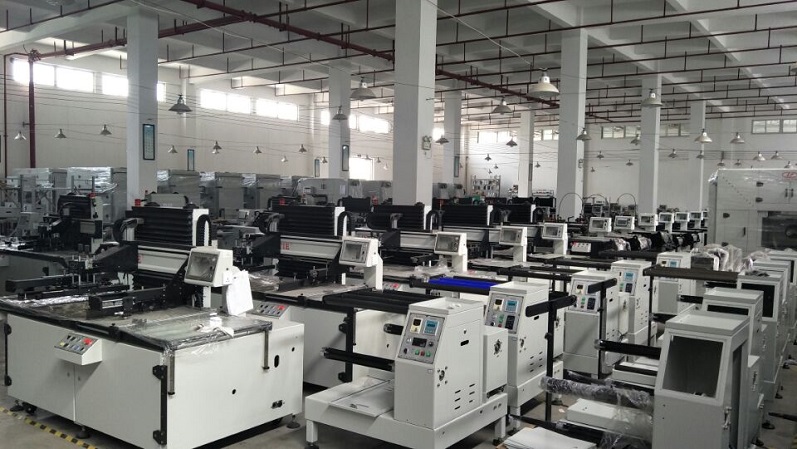

  • There are so many models of the single color roll to roll screen printing machine in our workshop which ensure short delivery time and can reduce your waiting cost.


7, What other kinds of service can you offer?
  • We can offer screen film, screen ink supplier and various ancillary equipment and accessories
  • After-sales service is maintenance, not repair
  • High requirement and High demand label, you can give to Lingtie Brand fully automatic screen printer
 8, What's the roll to roll screen printing machine price?
  • Tell the truth, the price is not very cheap. As you know, only a reasonable profit can guarantee high quality
9, What are the Certifications of your machines?
  • We have CE Certificate & ISO Certificate



10, How can you promise that Each Component, 10-years non-rusting?

  • We have the Self-Machining CNC Center and each process under the strict quality control,  which is one of the conditions that ensure the stability of the roll to roll screen printing system.
11, How many countries have you installed fully automatic screen printing machine so far?

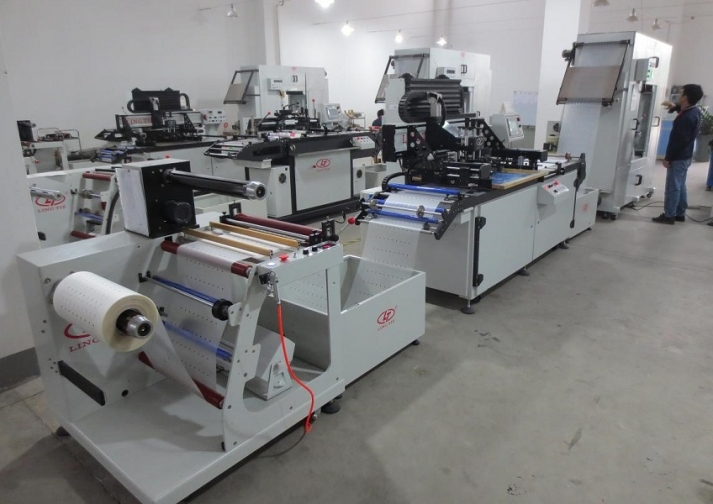

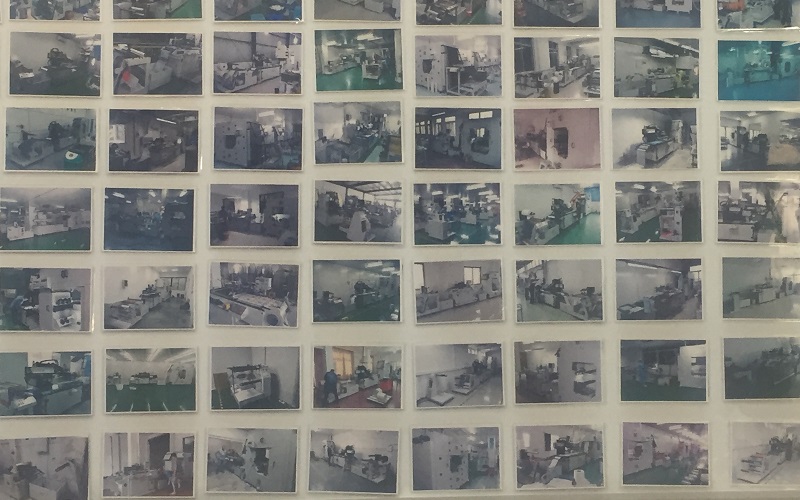

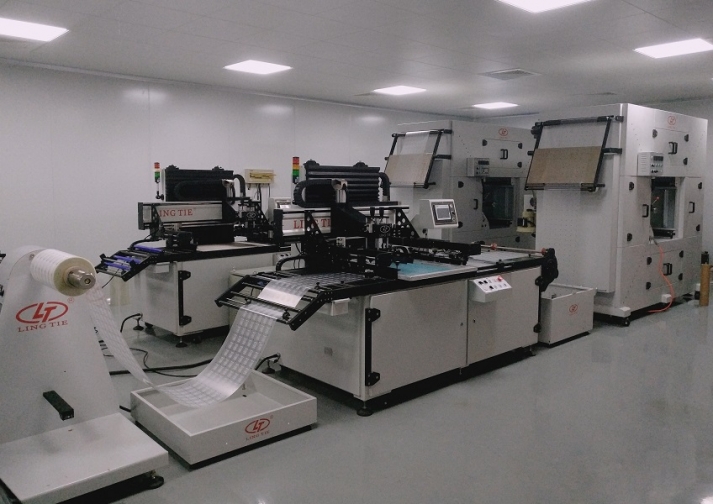

  • We had installed the machine more than 20 countries since 2009( get the export and import right in 2009), the below images show our machine in clients'  factory.


12, How many printing area sizes can you print?
  • We have 9 types of the printing area, such as  300 x 400 mm,350 x 450 mm, 460 x 560 mm, 500 x 600 mm, 550 x 700 mm, 600 x 800 mm, 700 x 600 mm, 500 x 1200 mm, 600 x 1600 mm.
