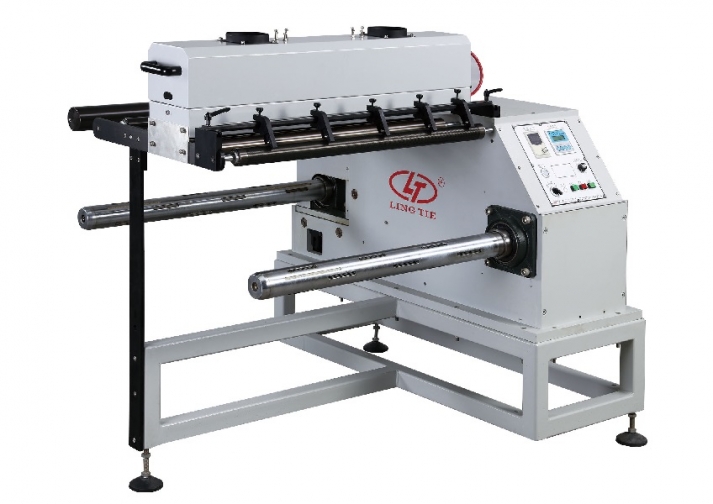

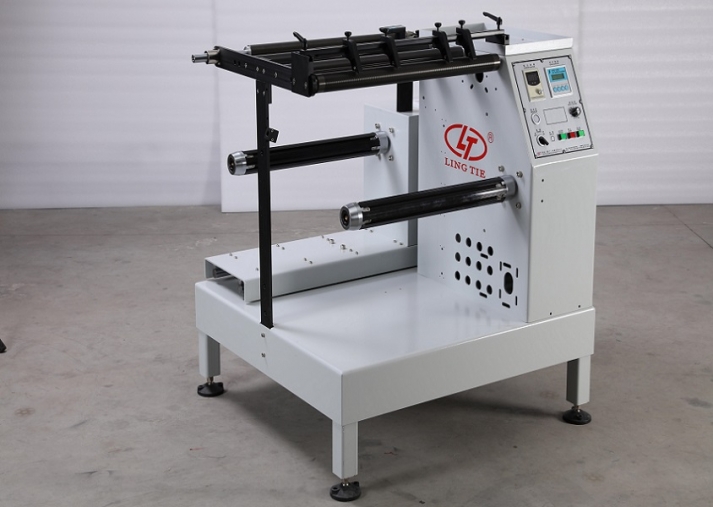

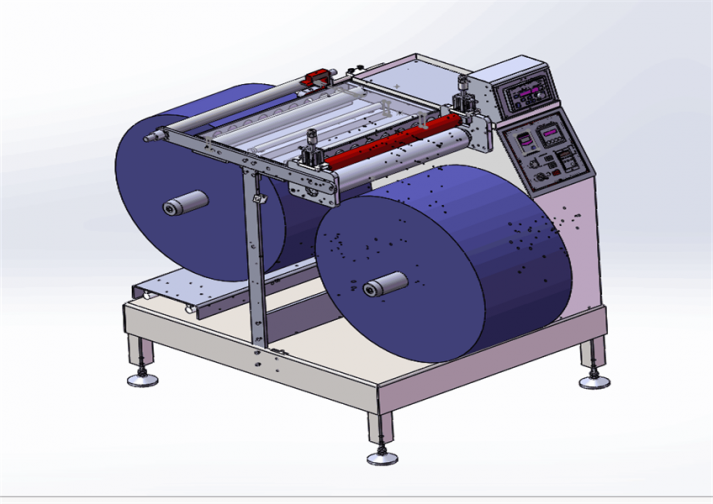

Winding Rewinding Machine

Product Name: Winding Rewinding Machine

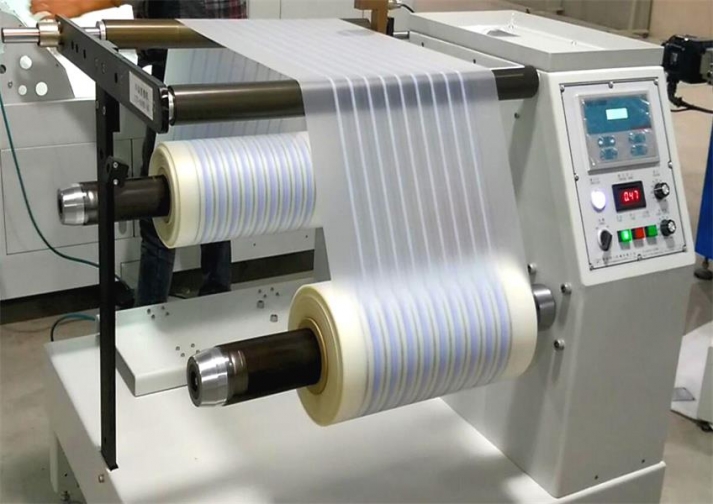

The Rewinding Machine with a web guiding system is a machine designed for making the unwinding side edge straight, slitting a big reel to small reels. This machine also used for ink jet printing.

With an unmatched 3-Year Parts and Labor Limited Warranty, all Lingtie Brand Guiding Winding Rewinding Machines are designed for worry-free 24/7 running.

The equipment Rewinding & alignment is done automatically by the machine at one time. The thickness of main baking products ranges from 0.02-15 mm in flat packaging materials; it is widely used in PVC, PET, PP, PC, BOPP, all kinds of film coils, IMD, IMF, IML, various types of electrical appliances. Boards, Membrane Switches, FPC Flexible Circuit Boards, Thermal Transfer Films, Non-woven Fabrics, Color Automotive Labeling, Water Labeling, Ceramic decals, Heat Transfer Paper, Tetoron, Fabrics, Artificial Leather, Leather, Various Adhesive, etc.

• Web Guiding System / Deviation Correction Motor: 150 W
• Main Motor: 750 W or 370 W for option (move the rewinding shaft)
• Deviation Correction Controller : EPC-1000 (Edge Position Controller - 1000 )
• Adjustable-speed Motor 1:10 or 1:5
• Magnetic Powder Brake: 5 - 25 KG
• Tension Controller Screen (0 - 25 N )
• Frequency Converter
• Standard Air shaft is 3 "  (  OEM shaft option )
• Max.Paper Width: 900 mm (above 900 mm width belong to OEM Model )
• Max. Allowable Weight: 50 KG
• Max. Roll Diameter: 550 mm
• Dimension : 350 - 500 KG (N.T. ) 380 - 600 KG (W.T.) ( 1.3 - 3 cubic meter )

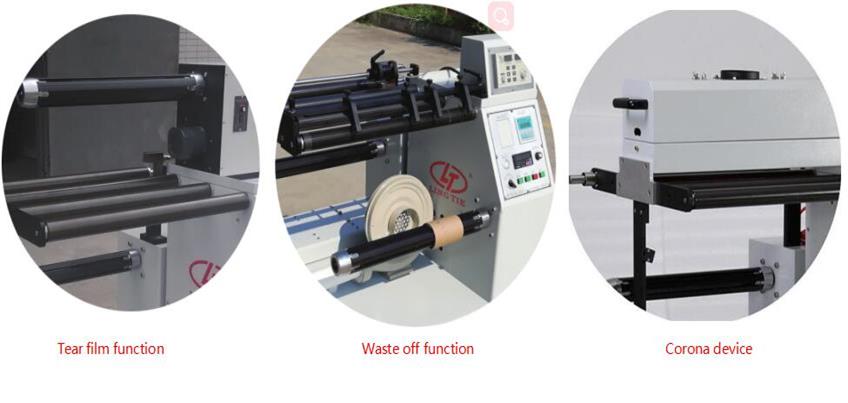

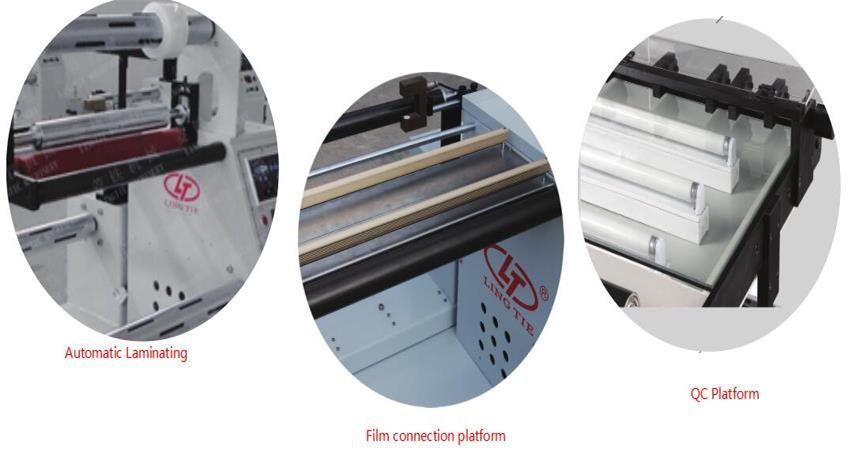

Multiple Optional Function for the Winding Rewinding Machine

• Corona device
• QC Platform
• Waste off function
• Two-stage speed
• Slitting Function
• Automatic Laminating
• Tear film function
• Anti-dust eliminating
• Count number function
• Count meter function
• Double-side dust eliminating
• Four sides dust eliminating
• Film Connection Platform
• Static electricity eliminating

The details function about the Doctoring Rewinding Machine

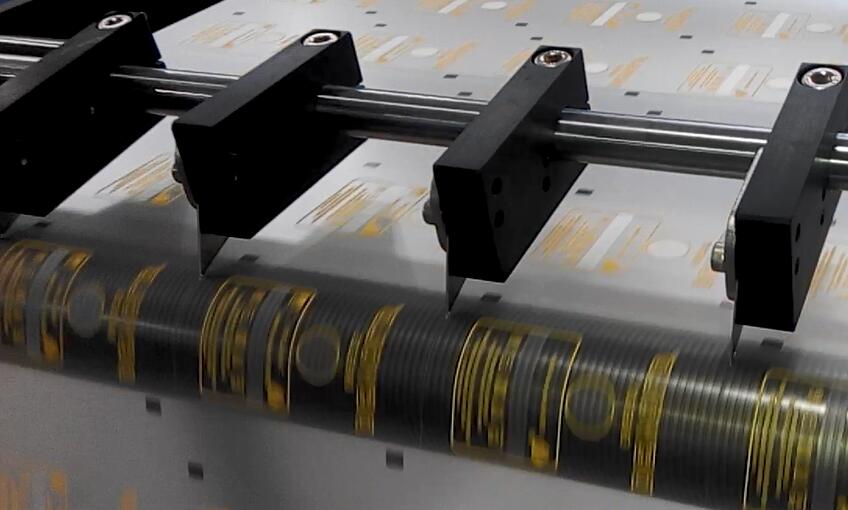

The Slitting Knives in the Doctoring Rewinding Machine
