Roll to Roll Screen Printing Machine

This is specially-designed web-fed screen printing machine for flexible stock, in a roll such as RFID, Electronics-FCB (Flexible Circuits Board), Membrane Switch, IMD and Diffusers, Heat transfer paper/film, rubber vulcanization, Stickers, OPP, PVC, PC, PET, Plastic Leather, Aluminum Foil and so on.
  • Brand:

    Lingtie
  • Item NO.:

    LTA-5060A
  • Payment:

    T/T , L/C
  • Market Price:

    $47000
  • Shipping Port:

    Xiamen Port, China
  • Lead Time:

    20 days after advance payment
Product Detail

Product Name: Roll to Roll Screen Printing Machine

  • It is composed of A Feeding Unit, A Screen Printing unit, and a Hot Air Dryer
  •  An automatic registration system with three sensors to ensure high printing precision for multicolor
  • Mitsubishi  and Yaskawa Servo Motors guarantee  the stability of the screen printing machine

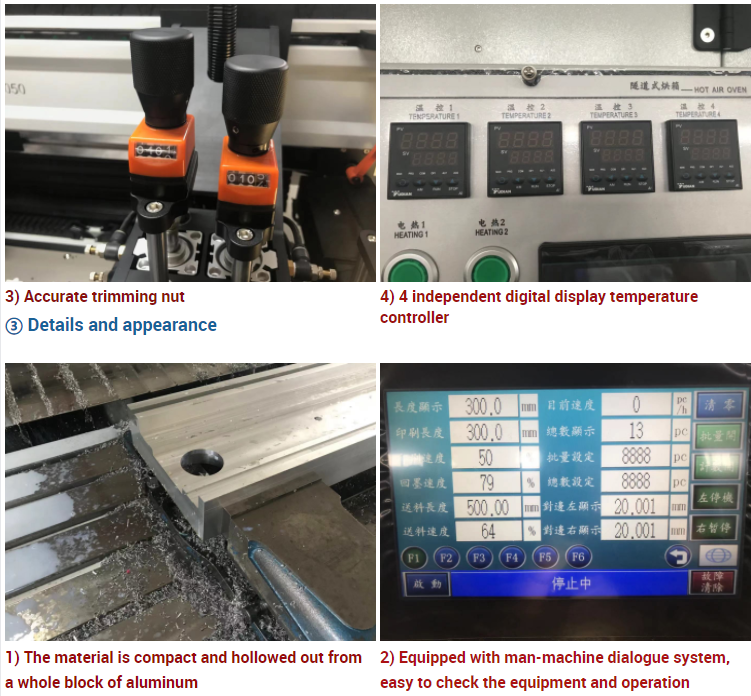

  • The excellent wear-resisting guide rail ensures the accuracy
  • Humane mechanism ensures the high precision
  • Automatic alarm when an error occur and offer the solution
  • Vacuum suction table for efficient workpiece fixing, with blowback function
  • solvent ink, water-based ink, and plastisol ink is OK including UV ink
  • 30-meter, 60-meter and 80-meter tunnel oven for option

 Application:

Roll to Roll Screen Printing Machine is specially designed for printing for film or paper material in roll form, such as PET, PVC, PE, PV, PP, BOPP film, which has been widely used in heat transfer label, adhesive sticker, Vulcanizing label, membrane switches, soft circuit board (flexible printed circuit ), printed electronics, control panels, graphics overlay, IMD (In-mold decoration label, IML, RFID antenna, FPC, ceramic decals, motorcycle helmet decals, nameplate, etc industry.

 Some Printed Label Samples Images: like the heat transfer, nameplate, RFID & Flexible circuit board




The Feeding Unit Characteristic

  • Servo motor for substrate pitch feeding and printing head stroke
  • Static electricity elimination (for the special industrial )
  • Splice station ( used for material splicing fast )
  • Web tension controller ( carry the magnetic powder brake )
  • Ionizing Blower
  •  Dust cleaning rollers


The Screen Printing Unit Features

  •   solvent ink, water-based ink, and plastisol ink is OK
  •  Powder Coating Machine can be added to the line if necessary.
  • It features an automatic registration system with three sensors to ensure high printing precision for multi color overprint.
  • Machine automatic stop and alarm when the substrate run out
  • Automatic alarm when an error occur and offer the solution

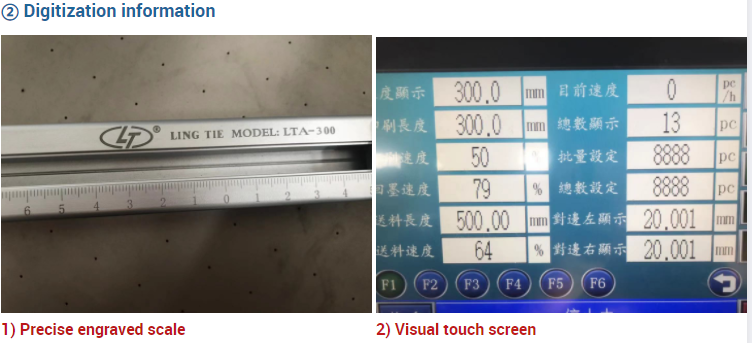

  • Touch screen control panel in English (it can change to the user local language)
  • Servo motor for substrate pitch feeding and printing head stroke
  • Vacuum suction table for efficient workpiece fixing, with blowback function.
  • Air suction puller rolling drum driven by YASKAWA servomotor.
  • YASKAWA servomotor drives squeegee traveling.
  • The squeegees mechanism equipped with a pressure stabilizer ensuring constant pressure all the times.
  • Glass table for printing quality inspection
  • Punching System for option

Hot Air Dryer Description

  • Used for raw material preshrink and drying of the printed product
  • Automatic Deviation Correction for option
  • Uniform Speed Device for option
  • Double-side dust elimination
  • 4-side or 2-side control separately 4-side or 2-side heating
  • Automatic laminating device
  • Temperature range: Room temperature --- 140℃
  • Inner Loop Length: 30 meters, 60 meters, 80 meters can choose


Parameter

Max.Print area:
500x600mm
Print speed:
0-2500 print/h
Screen frame area:
800x1000mm
Max.web width:
520mm
Air source:
0.4-0.6 mpa
Power:
220V, 3KW, 15A
Web thickness:
0.02-0.5mm
Gross weight:
700kg
Dimension:
2850x1160x1650mm


FAQ

1, How much printing accuracy can be achieved?

We can reach 0.01 mm overprint precision

2, How many colors do you machine can print?

We can print 1 color, 2 colors, 3 colors, 4 colors, 5 colors, 6 colors, 7 colors and more.

3, What's your printing speed?

10-20 meters /minuter in generally, 600-1200 meters / Hour.

4, What's the power consumption of this roll to roll printing machine system?

It's about 40 KWH /day,  working 8 hours

5, Could you supply the training by your side?

Yes, we  supply Free Training and Installation overseas, but the round airplane ticket is on your side

6, Are you a manufacturer or a distributor?

  • We are a professional manufacturer for 15-years in China.
  • There are so many models of the single color roll to roll screen printing machine in our workshop which ensure short delivery time and can reduce your waiting cost.



7, What other kinds of service can you offer?

  • We can offer screen film, screen ink supplier and various ancillary equipment and accessories
  • After-sales service is maintenance, not repair
  • High requirement and High demand label, you can give to Lingtie Brand fully automatic screen printer

 8, What's the roll to roll screen printing machine price?

Tell the truth, the price is not very cheap. As you know, only a reasonable profit can guarantee high quality

9, What are the Certifications of your machines?

We have CE Certificate & ISO Certificate



10, How can you promise that Each Component, 10-years non-rusting?

We have the Self-Machining CNC Center and each process under the strict quality control,  which is one of the conditions that ensure the stability of the roll to roll screen printing system.



11, How many countries have you installed fully automatic screen printing machine so far?

We had installed the machine more than 20 countries since 2009( get the export and import right in 2009), the below images show our machine in clients'  factory.



12, The machine Video Center, Please click the below link

http://www.xmlingtie.com/roll-to-roll-screen-printing-machine-price_n42
