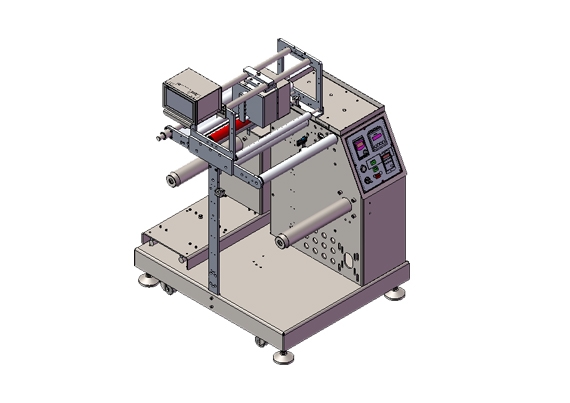

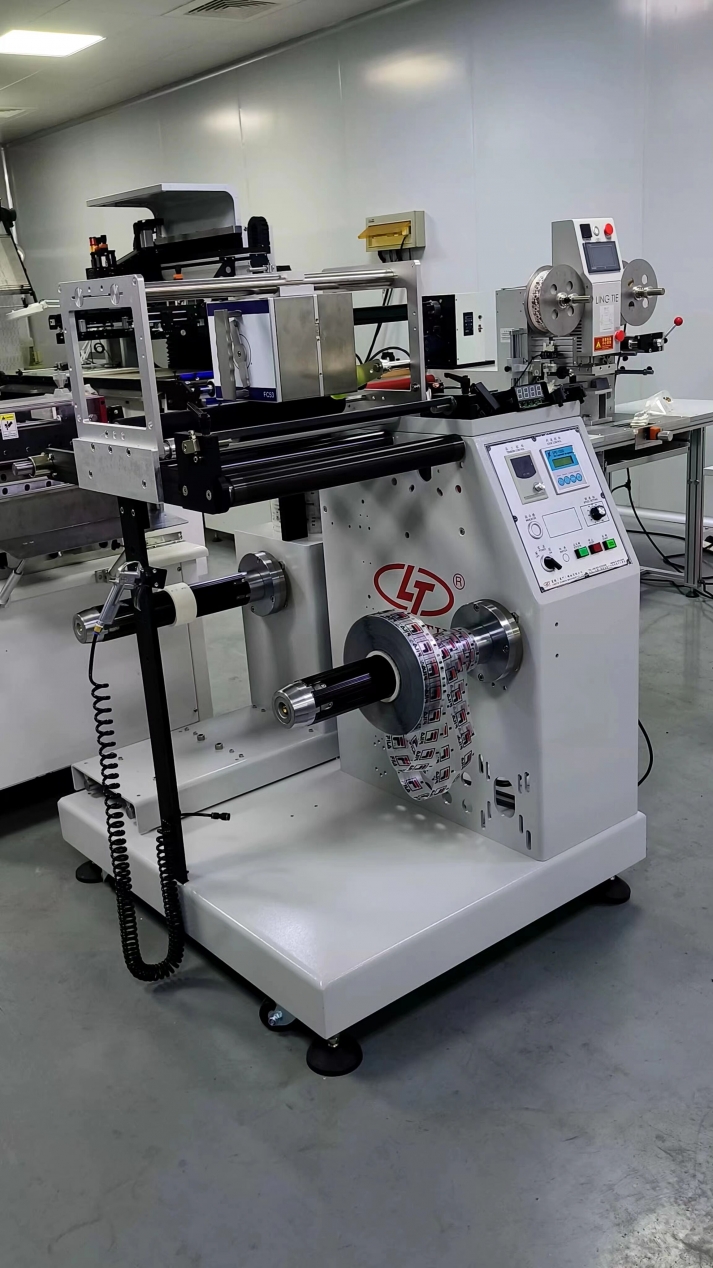

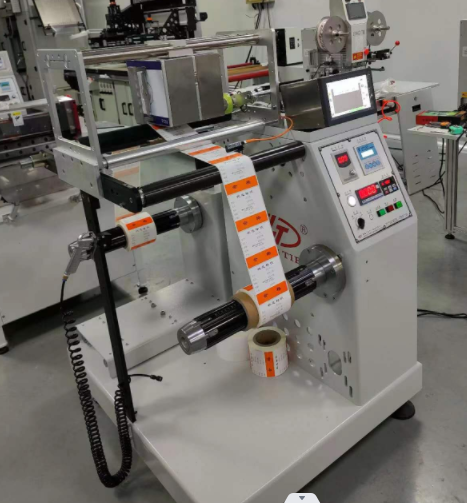

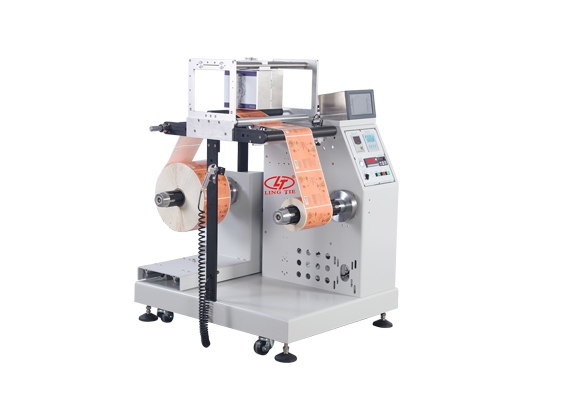

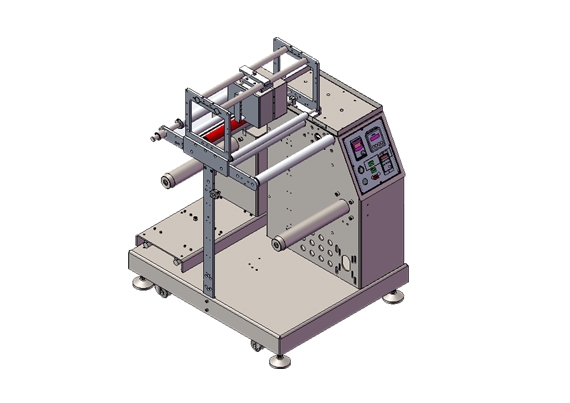

Rewinder with thermal transfer printing

Rewinding with TTO thermal transfer overprint function, It can print date, code, serial number, etc. on label or material in roll form
  • Brand:

    Lingtie
  • Item NO.:

    LTD-600B
  • Payment:

    T/T
  • Price:

    $5000
  • Product Origin:

    China
  • Color:

    silver white
  • Shipping Port:

    Xiamen port
  • Lead Time:

    15days
Product Detail

This a rewinding machine with TTO thermal transfer overprint function.  You can use it when you want print series number on your label ; Date of manufacture ; QR code ; counting the label quantity ;  We can handle the mechanical and circuit matching for this thermal transfer (carbon strip) printer functional components.


Main parameters :

Model LTD-600B
Max.Paper Width 600mm
Allowable Weight 70kg
Max Diameter 600mm
Unwinding & rewinding air shaft  76mm
Power Supply 750w
Tension 0-25N
Net Weight 350kg
Machine Size (L1010xW950xH1120)mm

Main configurations :




  1.  Taiwan DELTA  convertor for free control of winding speed;
  2.  Imported high quality motor and speed reducer;
  3.  DC Edge position control system;
  4.  Ultrasonic Sensor which is able to sense transparent material;
  5.  Imported good quality bearings to ensure the machine able to run full day;
  6.  Magnetic powder brake for unwinding tension control and winding tightness adjustment;
  7. Air shafts for unwinding and rewinding shaft;
  8.  Automatically stop and alarm when the material deviation is out of limit or the material rewinding is finished;
  9. The machine is included uniform speed device and Automatic meter counter
  10. Electrostatic painting and stoving varnish on the machine body; All operation manual in English.
