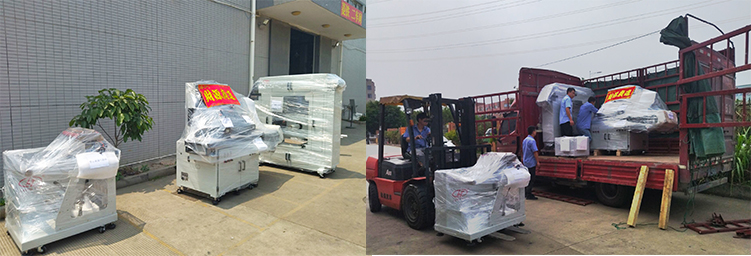

Overview Quick Details Place of Origin:  Fujian, China   Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant..... After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service Local Service Location: None      Showroom Location: None Brand Name:  Lingtie Condition: New Warranty: 1 year After-sales Service Provided: Free spare parts, Field installation, commissioning and training... Usage:  Logo label heat transfer printing speed: 0-3600 Machine size: L680*W400*H745mm Weight:  80kg working table size:  L1230*W400*H1500mm Printing size: 100*100mm Packaging & Delivery Selling Units: Single item Single package size: 150X50X150 cm Single gross weight:130.0 kg Package Type:wooden boxes for sea transportation Lead Time : 15 days after advanced payment. Video Description Apparel manufacturers, looking for alternatives to sew in t-shirt labels and garment tags have transitioned to tagless care labeling, which way can make the consumer more comfortable in their clothes and reduce costs. Speed, durability, and ease of use separate the Ling-tie Roll to Roll from all other roll label transfer presses. It is designed specifically for high production applications of tagless care labels. Short web paths, tool-less web guides, and quick release lower platens decrease change-over times and eliminate excessive waste. and its sensor adjustment is simple and capable of reading either side of the roll transfer. Max.printing area  mm 100*100 Roll diameter OD mm 195 Roll diamter ID mm 25-76 Temperature celsius room temperature -200 Power v 1p 220 Air source mpa 0.4-0.6 Speed  t/h 0-3600 Weight  kg 80 Size mm L680*W400*H745 The Roll to Roll Label Press is designed for many customers' requested. The customer needs the Fully automatic roll to roll label press to reduce their cost, improve the output effectively. and they know Lingtie Machinery plant has the factory price to offer.  For this machine specification: *Maximum and minumum width of transfer label? ————the range is  0-150mm *What is max diameter of label rolls? ————195mm *Max.temperature how many degree? ————200°C *Can we arrangment pressing time? ————Yes *Pressure system oil or air? ————Air *What is dimension of printing area? ————100x100mm,200x200mm,300x300mm,the size also can be custom made

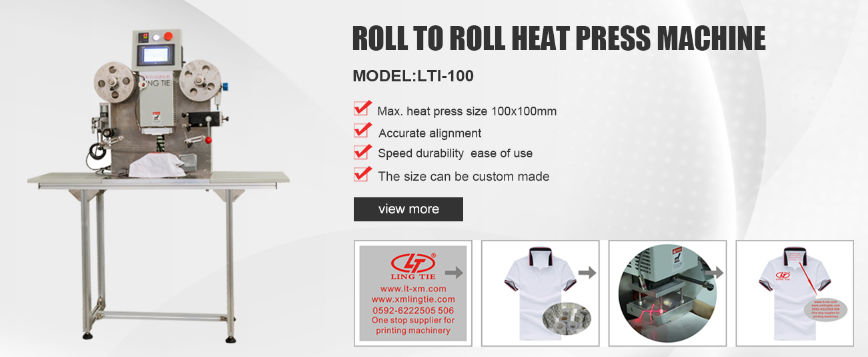

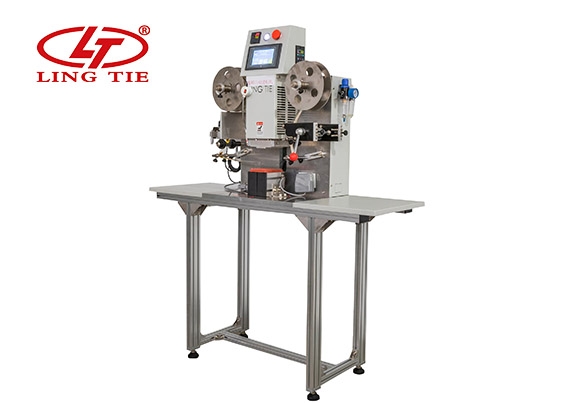

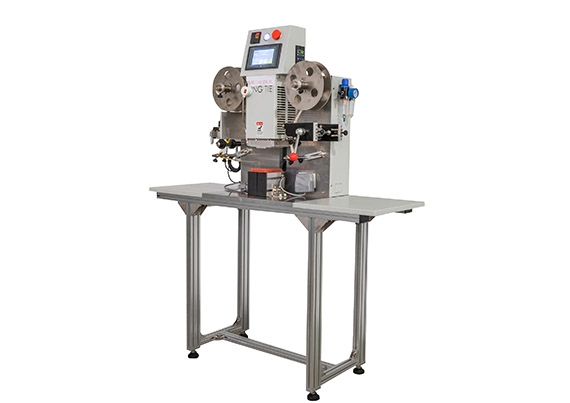

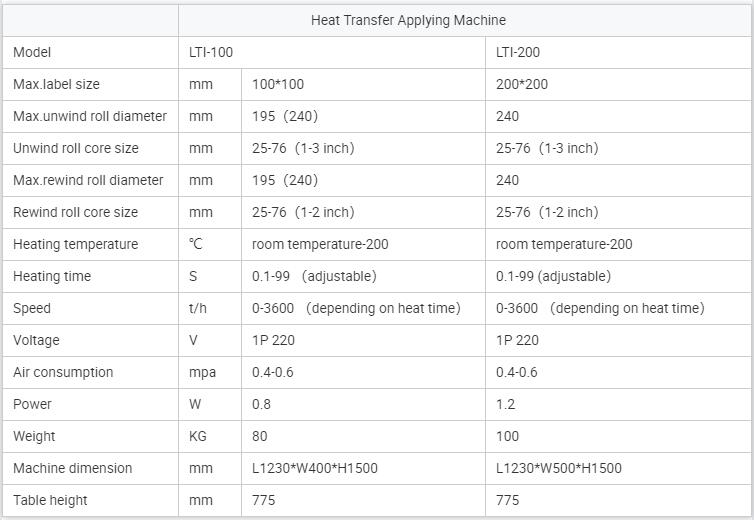

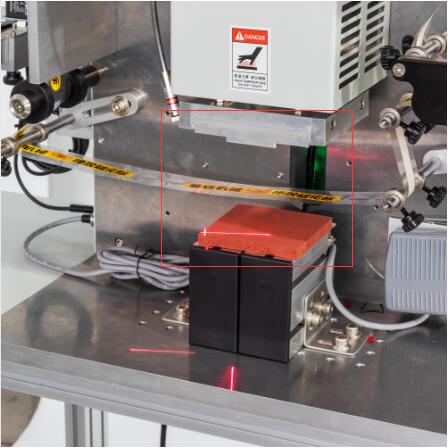

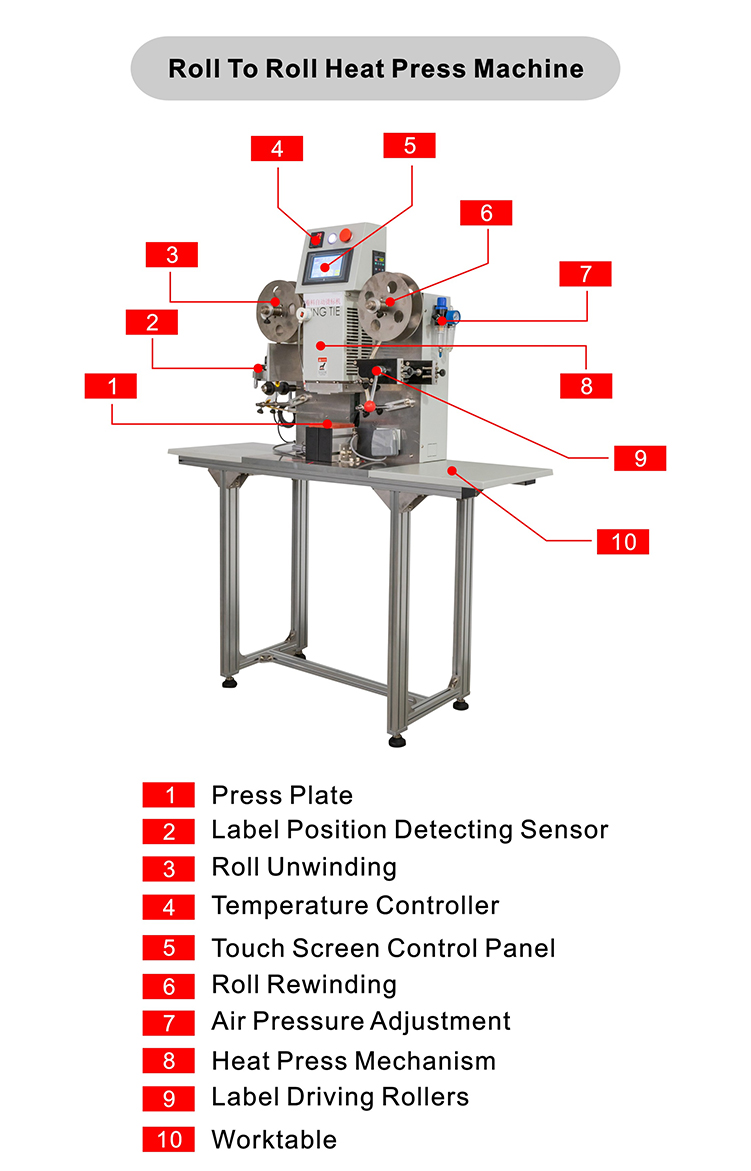

Tag less logo heat transfer applying machine 1.Efficient, accurate, durable and easy to operate, which makes the automatic Label transfer stamping machine completely different from other stamping machines on the market. 2. The  material can be automatic feeding ,  PLC control and color code sensor are adopted, can be directly set or design induction point on precise positioning, ensure the stamping of the same position, avoid the hot target position error, replace artificial put mark, save labor costs, high efficiency, convenient operation, improve production efficiency. 3.Can also be paired with automatic feeding manipulator,  achieve full automatic unmanned work! 4.Especially suitable for the transfer of all kinds of marks, trademarks , tag less logo of  shoe tongue, insole, underwear, gloves and socks Model LTI-100 LTI-200 Max.label size 100*100mm 200*200mm Max.unwind roll diameter 195mm 240mm Unwind roll core size 25-76mm(1-3inch) 25-76mm(1-3inch) Max.rewind roll diameter 195mm 240mm Rewind roll core size 25-76mm(1-3inch) 25-76mm(1-3inch) Heating temperature room temperature-200 centigrade room temperature-200 centigrade Voltage 1P 220V 1P 220V Air consumption 0.4-0.6 mpa 0.4-0.6 mpa Power 0.8w 1.2w Weight 80kg 100kg Machine dimension L1230*W400*H1500mm L1230*W500*H1500mm Table height 775mm 775mm

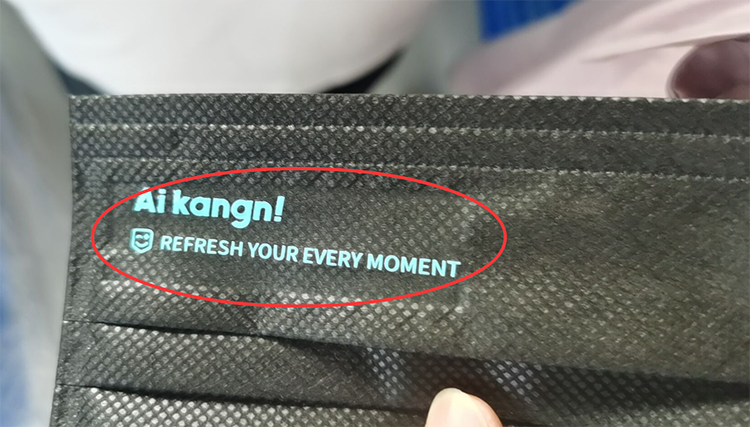

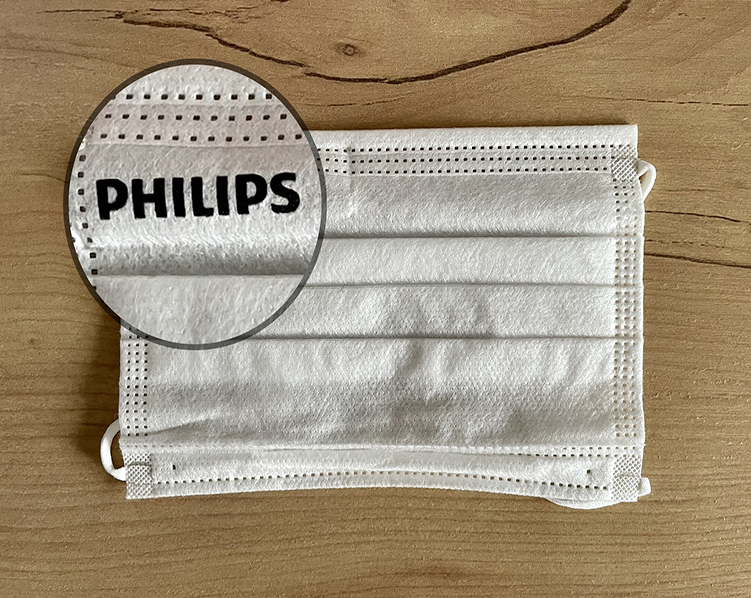

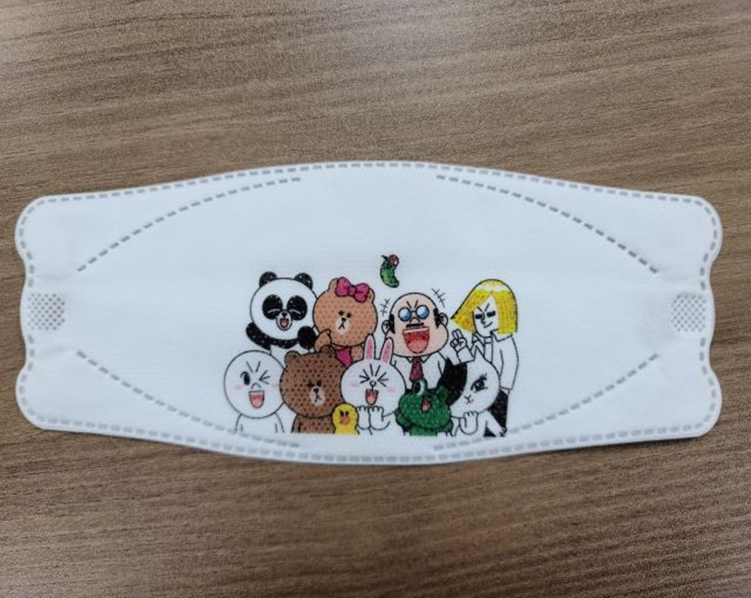

This hot press machine is suitable for hot stamping mask patterns.

This machine is suitable for the hot stamping and heat transfer of labels or trademarks of shoe's tongue, insoles, masks, underwear, panties, gloves, socks, etc.

The Roll to Roll Screen Printing Machines comprises of a feeder, a printer, and a dryer. Printer and dryer set in one of the complete processes is the best mass-produced select. We have the reversed direction wed feeding model ensure ONE WORKER OPERATE TWO MACHINES.
