Automatic Rewinding Machine With Counter Meter
1.Electrostatic powder coated body, eco, solvent resistant & durable 2.Imported JSCC motor & reducer, stepless speed, stable operation 3.Electromagnetic brake, easy flexible tension control, data manageable 4.Semi-auto tension control optional, auto/manual adjust with roll diameter 5.Japan MITSUBISHI / Taiwan DELTA inverter, precise speed, smooth start-stop, durable 6.Taiwan MEAN WELL power supply, high efficiency, compact, wide voltage stable 7.Auto inflatable air shaft & interchange base optional, fast loading. Shaft size 0.4"-6", leak-proof & durable. 8.Digital display electromagnetic tension, adjustable, easy operation & data management 9.Optional imported sensors (SICK/LEUZE/PANASONIC/FOTEK) for meter & piece counting. Auto stop at preset value, 2-speed slow-down available. 10.Dual counter optional, match inverter/multi-speed controller, slow down in advance for precise stop, high accuracy. 11.Optional all-in-one PLC+HMI or Mitsubishi PLC+HMI, constant line speed for all roll diameters. 12.Auto EPC optional, straightens uneven material for tidy rewound edge 13.Forward/reverse rewind shaft optional. Unique compact design, low power consumption (0.1–0.2 kWh/h), easy operation. 14.Adjustable base feet for uneven worktables 15.Digital speed display, adjustable, easy operation & data management 16.Long service life, low failure rate, universal & abundant spare parts, high interchangeability 17.20 years experience, 20+ reserved optional functions for future upgrade. Unwinder rolls diameter 450 mm Rewinder rolls diameter 450 mm Unwind shaft 76mm *170mm Rewind shaft 76mm *170mm Rewinding speed 1-100meter / min Max. Allowable weight 30 kg Power 0.2 kw/ 1 phase 220V 50 HZ Power voltage 220V Machine size 70 X55 X63 cm
Details
Plastic films (PP, PET, BOPP) Slitting machine with round blade
This slitting rewinder is ideal for manufacturers seeking efficiency, precision, and automation in their converting processes
Details
Slitting machine with 2 rewinding shafts
This slitting rewinder is ideal for manufacturers seeking efficiency, precision, and automation in their converting processes
Details
A new container loading is currently in progress.
A new container loading is currently in progress. We are doing our utmost to ensure you receive your high-quality screen printing production line at the earliest possible time.

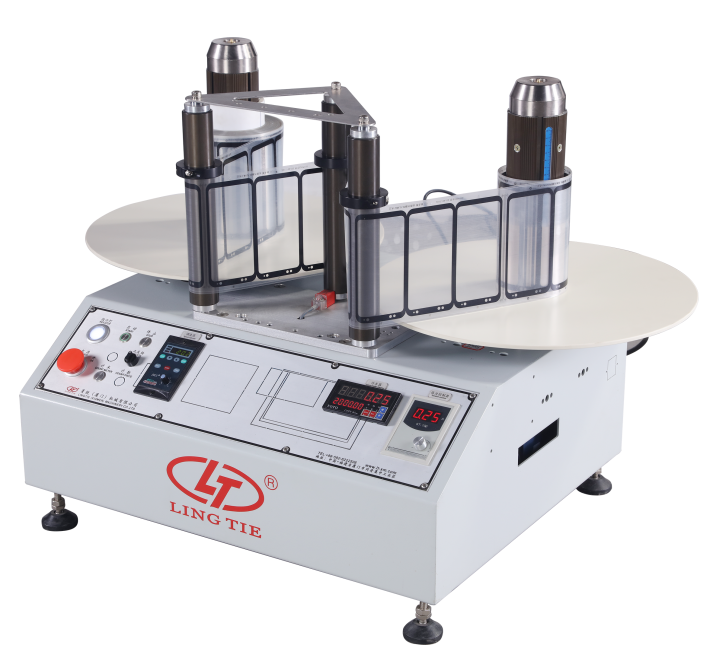

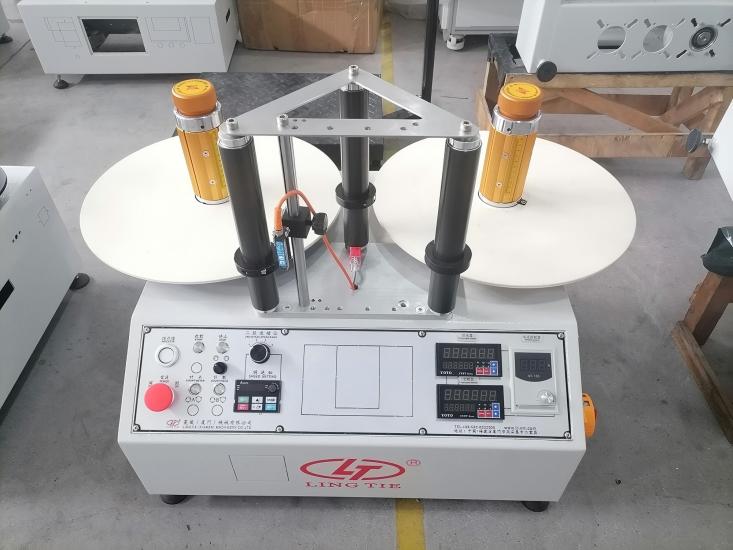

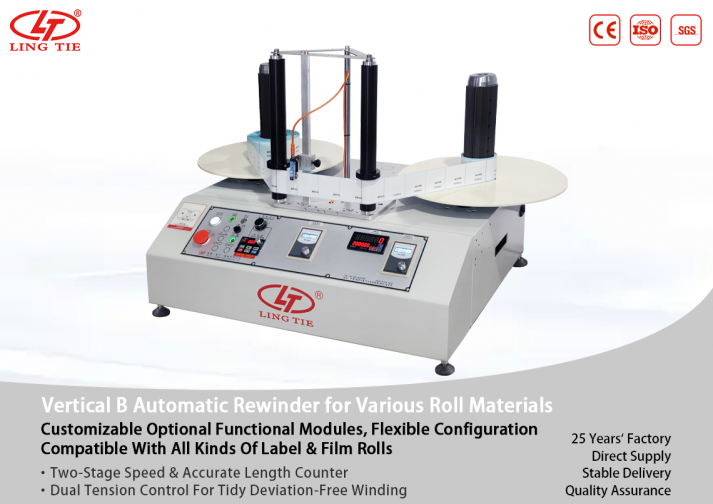

Automatic Rewinding Machine With Counter Meter
| 1.Electrostatic powder coated body, eco, solvent resistant & durable | |||||||||||||||||||||||
| 2.Imported JSCC motor & reducer, stepless speed, stable operation | |||||||||||||||||||||||
| 3.Electromagnetic brake, easy flexible tension control, data manageable | |||||||||||||||||||||||
| 4.Semi-auto tension control optional, auto/manual adjust with roll diameter | |||||||||||||||||||||||
| 5.Japan MITSUBISHI / Taiwan DELTA inverter, precise speed, smooth start-stop, durable | |||||||||||||||||||||||
| 6.Taiwan MEAN WELL power supply, high efficiency, compact, wide voltage stable | |||||||||||||||||||||||
| 7.Auto inflatable air shaft & interchange base optional, fast loading. Shaft size 0.4"-6", leak-proof & durable. | |||||||||||||||||||||||
| 8.Digital display electromagnetic tension, adjustable, easy operation & data management | |||||||||||||||||||||||
| 9.Optional imported sensors (SICK/LEUZE/PANASONIC/FOTEK) for meter & piece counting. Auto stop at preset value, 2-speed slow-down available. | |||||||||||||||||||||||
| 10.Dual counter optional, match inverter/multi-speed controller, slow down in advance for precise stop, high accuracy. | |||||||||||||||||||||||
| 11.Optional all-in-one PLC+HMI or Mitsubishi PLC+HMI, constant line speed for all roll diameters. | |||||||||||||||||||||||
| 12.Auto EPC optional, straightens uneven material for tidy rewound edge | |||||||||||||||||||||||
| 13.Forward/reverse rewind shaft optional. Unique compact design, low power consumption (0.1–0.2 kWh/h), easy operation. | |||||||||||||||||||||||
| 14.Adjustable base feet for uneven worktables | |||||||||||||||||||||||
| 15.Digital speed display, adjustable, easy operation & data management | |||||||||||||||||||||||
| 16.Long service life, low failure rate, universal & abundant spare parts, high interchangeability | |||||||||||||||||||||||
| 17.20 years experience, 20+ reserved optional functions for future upgrade. |
| Unwinder rolls diameter | 450 mm | |
| Rewinder rolls diameter | 450 mm | |
| Unwind shaft | 76mm *170mm | |
| Rewind shaft | 76mm *170mm | |
| Rewinding speed | 1-100meter / min | |
| Max. Allowable weight | 30 kg | |
| Power | 0.2 kw/ 1 phase 220V 50 HZ | |
| Power voltage | 220V | |
| Machine size | 70 X55 X63 cm | |
Brand:
LingtieItem NO.:
LTD-450BPayment:
FOB/EXWMarket Price:
$1800Price:
$1700Product Origin:
ChinaColor:
sliverShipping Port:
XiamenLead Time：
7days
1.Electrostatic powder coated body, eco, solvent resistant & durable
2.Imported JSCC motor & reducer, stepless speed, stable operation3.Electromagnetic brake, easy flexible tension control, data manageable
4.Semi-auto tension control optional, auto/manual adjust with roll diameter
5.Japan MITSUBISHI / Taiwan DELTA inverter, precise speed, smooth start-stop, durable
6.Taiwan MEAN WELL power supply, high efficiency, compact, wide voltage stable
7.Auto inflatable air shaft & interchange base optional, fast loading. Shaft size 0.4"-6", leak-proof & durable.
8.Digital display electromagnetic tension, adjustable, easy operation & data management
9.Optional imported sensors (SICK/LEUZE/PANASONIC/FOTEK) for meter & piece counting. Auto stop at preset value, 2-speed slow-down available.
10.Dual counter optional, match inverter/multi-speed controller, slow down in advance for precise stop, high accuracy.
11.Optional all-in-one PLC+HMI or Mitsubishi PLC+HMI, constant line speed for all roll diameters.
12.Auto EPC optional, straightens uneven material for tidy rewound edge
13.Forward/reverse rewind shaft optional. Unique compact design, low power consumption (0.1–0.2 kWh/h), easy operation.
14.Adjustable base feet for uneven worktables
15.Digital speed display, adjustable, easy operation & data management
16.Long service life, low failure rate, universal & abundant spare parts, high interchangeability
17.20 years experience, 20+ reserved optional functions for future upgrade.
| Name | Auto-rewinding machine | ||||||||||
| Model | LTD-450B | ||||||||||
| Max.unwinding plate dia | mm | 450 | |||||||||
| Max.rewinding plate dia | mm | 450 | |||||||||
| Unwinding shaft dia | in | 1-6英寸轴可选 | |||||||||
| Rewinding shaft dia | in | 1-6英寸轴可选 | |||||||||
| Max roll diameter | mm | 500 | |||||||||
| Speed | m/min | 0-(40-200) | |||||||||
| Allowable Weight | kg | 30 | |||||||||
| Power | w | 200 | |||||||||
| Power Supply | v | 110/220/或其他 | |||||||||
| Tension | N | 12 | |||||||||
| Material width | mm | 0-600 | |||||||||
| Weight | kg | 70 | |||||||||
| Machine Size：L*W*H | mm | 700*550*650 | |||||||||
| * Functions vary with actual configuration. | |||||||||||
-
Automatic Label Rewinding Machine
Automatic label Counting rewinding machines exported 1500 sets to all parts of the world in 15 years in total. Lingtie Brand has maintained an excellent reputation in the printing industry.
-
Label Counter film rewinding Machine
The automatic roll to roll Label Counter helps with counting and rewinding label conveniently and fast.
-
Label Counting Machine
The Label Counting Machine help you to count the number of labels on a roll and rewinding synchronously, reverse the direction of the labels as well. And the counting function including count meter and count piece or count number.
-
Automatic Label Counting Machine
Lingtie Machinery is a manufacturer of the Automatic Label Counting Machine in China for 15 years. We are an OEM factory also. Looking for agent or distributor all over the world.
-
Reel to Reel Label Rewinding machine
The Reel to Reel Label Rewinding machine is a quick way to count the number of labels on a roll, reverse the direction of the labels on a roll.
-
Bar code Label Rewinding Machine
The hot product recommends -- Barcode Label Counting Machine is the newest demand for sale.
