Reel to Reel Label Rewinding machine

The Reel to Reel Label Rewinding machine is a quick way to count the number of labels on a roll, reverse the direction of the labels on a roll.

  • Brand:

    Lingtie
  • Item NO.:

    LTD-670
  • Price Range:800 - 3000/$1
  • Shipping Port:

    Xiamen port
  • Lead Time:

    10 days after receive the 30% payment
Product Detail

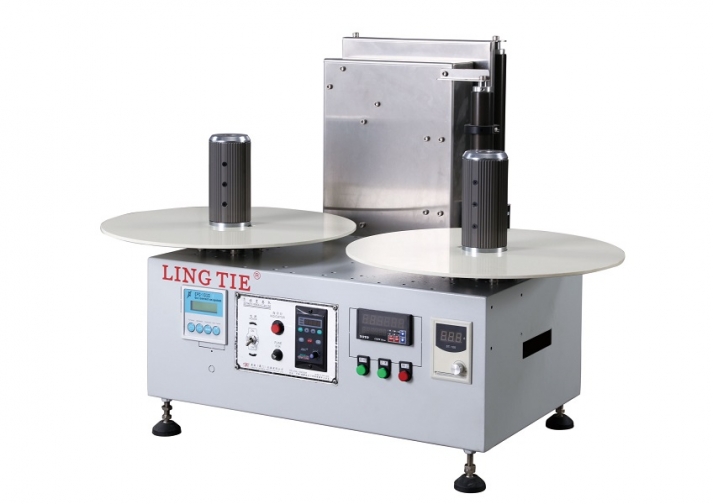

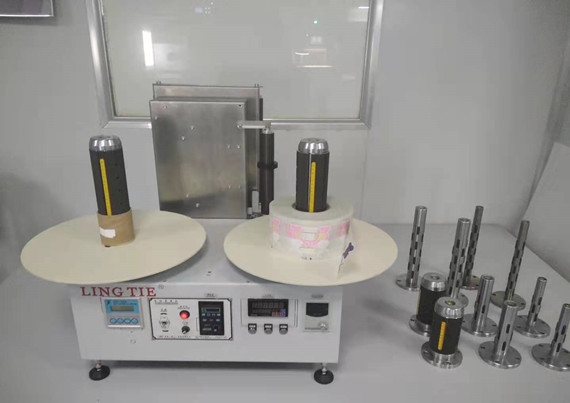

Description: Reel to Reel Label Rewinding machine

The Reel to Reel Label Rewinding machine is a quick way to count the number of labels on a roll, reverse the direction of the tags on a roll,

With an unmatched 2-Year Parts and Labor Limited Warranty, all Lingtie Brand Reel to Reel Label Counter Machine is designed for worry-free 24/7 running.

Exported 100 sets to 20 countries every year, equipped with the mechanical shaft or inflatable shaft, interchange various core sizes, kinds of roll diameter and speed adjustment, etc., present the most versatile way to get the job done.

The specification for Reel to Reel Label Rewinding machine

  •  Max.roll diameter -- 670 mm ( max. 26.3 " roll diameter capacity )
  •  Max. roll label high / width  --- 600 (23.5” roll label width / high)

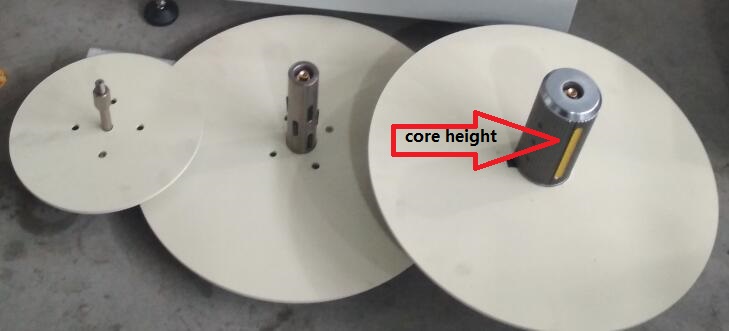

  • Core Diameter – 25.4 mm to 15.24 mm core diameter ( 1 " to 6 " core diameter,)
  • Unwind core and rewind core is interchangeable
  • Allowable weight  -- 40 kg  ( the max. labels total weight )
  • Power supply -- 220 Volts /0.12 kW, single phase
  • dimension -- 660 x 400 x 580 mm (is not fixed )
  • Bi-directional rewind capability (from right to left and from left to right function )

The Optional Function for Reel to Reel Label Rewinding machine

  • tear film function
  • air shaft
  • mechanical shaft
  • Two-stage speed
  • Anti-dust eliminating
  • Double-side dust eliminating
  • Static elimination brush
  • Clockwise and counter-clockwise rewinding
  • count piece function / count number function
  • count meter function
  • eliminate static electricity function

Most of the roll film label, Barcode Labels, booklet labels, coupon labels, digital labels, direct mail labels, printed on paper, films, non-woven fabric, foil, thermal ribbon, etc.


FAQ

1, Are you a manufacturer or a distributor?
---We are a professional manufacturer for 15-years in China.

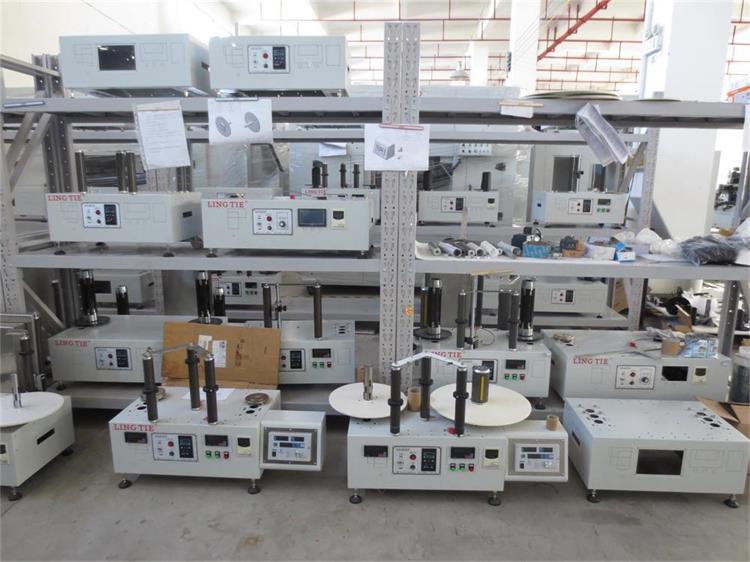

----There are so many models of the Label Rewinder Machine in our workshop which ensure short delivery time and can reduce your waiting cost.



2, What kind of material does your Label Counting Machine rewind?
-----Most of the material could be rewind in roll form, including the elastic material. Before your order, you can send me some samples is the best way.

3, What the maximum width of the material could be rewind?

------The standard width is 150mm, 170mm, 300mm & 600mm, and another width we can customize for the client.

4, Is there any additional function of your machine?

-----Yes, Count Meter, Count Piece, Tension Control, Web guide, dust removing, Static Eliminating for an option.
5, How many sizes of shafts do your machine use?
------The standard shaft size is 25mm, 38mm, 76mm ( 3 inches), and another size we can customize for the client.
--------There are two kinds of shafts for choose, air shaft, and mechanical shaft. ( air shaft need a compressor to expand)



6, What is the maximum reel diameter of your machine?
-------The standard reel diameter is 300mm, 350mm, 450mm, 550mm, 600mm, 650mm, 670mm.
7, What's the Label Counting Machine price?
------The price according to your side demands, and the price range: 800--7000 $
8, What are the Certifications of your machines?
------We have CE Certificate & ISO Certificate



9, How can you promise that Each Component, 10-years non-rusting?
-------We have the Self-Machining CNC Center and each process under the strict quality control,  which is one of the conditions that ensure the stability of the Laber Counter Machine
10, We supply OEM/ODM Service to the worldwide clients.

11, What's the packing method of your reel label rewinding machine?
