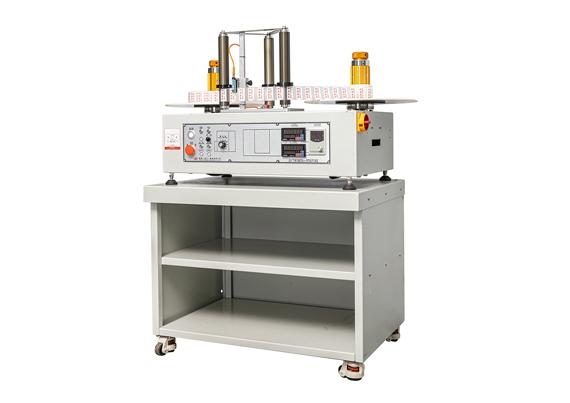

Tabletop Rewinder


  • Brand:

    Lingtie
  • Item NO.:

    LTD-670A
  • Payment:

    T/T , T/C, Pay pal, Western Union...
  • Price:

    $2000/set
  • Product Origin:

    China
  • Shipping Port:

    Xiamen, China
  • Lead Time:

    10 days after 30 % deposit
Product Detail

Overview

Quick Details


Warranty:
1 year
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant.....
Type:
Labeling Machine
Packing Material:
Wood
Automatic Grade:
Automatic Application:
Food, Beverage, Commodity, Medical, Textiles
Condition:
New
Driven Type:
Mechanical
Voltage:
220
Place of Origin:
Fujian, China
speed:
0-3600
Machine size:
L830*W500*H600mm
Brand Name:
LINGTIE After-sales Service:
 Online support, Video technical support, Field installation
Weight:
40KG HS CODE:
847780000
Packaging & Delivery

Selling Units:   Single item

Single package size:L900*W600*H600

Single gross weight:80KG

Lead Time :

Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated




    Application

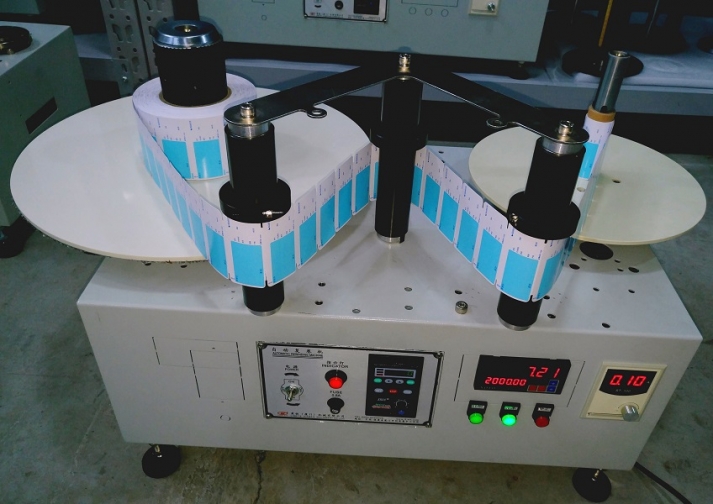

    Automatic small rewinding machine label counting machine is widely used in roll material rewinding and label counting,such as adhesive stickers ,RFID label, Paper roll ,non-woven ,foil ,as well as various thin plastic film (PET.PVC,PC.POPP)

    Function for option:

    Main function:

    *Count meter、*Count piece、*Webguide *Static elimination brush *Double motors *Splice station
    * Interchangeable Shaft * Semi-automatic tension/ Full automatic tension * Uniform speed
    * Shaft length and size can be customized * Specific speed of motor can be customized* Power supply can be customized
              Count piece sensor                                  Count meter sensor                        Tension control

      This function can be used to count              This function can be used to count            Magnetic powder and

       label quantity while rewinding .Stop            the  length while rewinding .Stop             Mechanical tension for

       the automatically when data reaches           automatically when data reaches              option.

       set parameters                                       set  parameters.


    Webguide function for option                               Static elimination brush                                             Splice Station

    With this function ,make label roll                  With this elimination brush, can                   With this splice station, you

    edge straight while rewinding .                       effectively prevent static electricity.              may connect your material.

    Our Advantages

    This small rewinding machine it isn't take up much space , easy to move and operate .There are multi function for option for your special demands.

    Variety size of shaft for choose ,THE LENGTH ,THE SHAFT DIAMETER also can be customized


    Shaft for option



    *We can provide optional 3 kinds of shafts .

    *For more detail difference among the shafts ,Please click following picture.
      Special Base for Interchangeable shaft                                           Click pictures for more detail video show

    * One set of equipment can serve many purposes                             * Only need to replace the shafts with

                                                                                            different diameters.




    To choose the right machine ,you need to provide following information

    Information collection for your right machine

    1.The center core of your label roll is a paper core or plastic core?
    2.The diameter of the center core ?
    3.What is your max.label width?
    4.What is the standard of power supply?
    5.The total weight of your roll material ?
    6.The rewinding speed your request ? ( Normal speed 40-80meters per minute)
