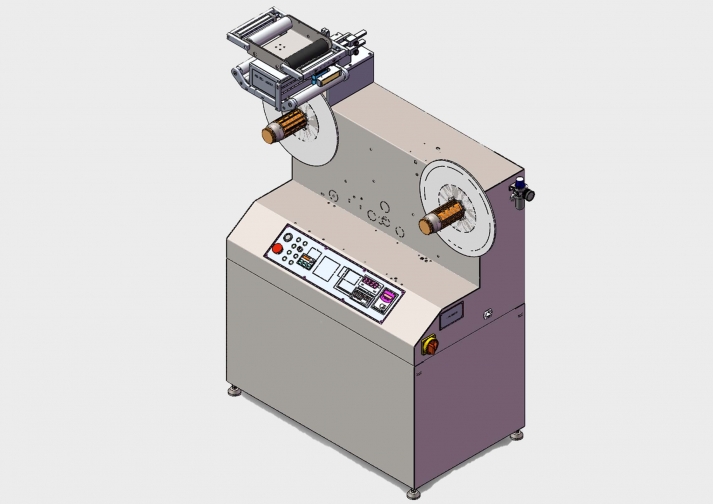

TD-650C Web Guiding & Rewinding Machine - Product Introduction

Core Functions

• Automatic Web Guiding System: Corrects lateral deviation in real time, guaranteeing straight, wrinkle-free and neatly aligned rolls for all flexible substrates.
• Dual Counting System: Equipped with both meter counting (for precise length measurement) and piece counting (for batch quantity control), supporting accurate production tracking and order management.
• Stable Tension Control: Maintains consistent, adjustable tension throughout the rewinding process, preventing material stretching, wrinkling, creasing or breakage, even for thin, delicate films.
• Integrated Inspection Station: Features a dedicated inspection table for real-time quality checks, allowing operators to easily spot defects, perform splicing, and adjust production on the fly.
• Equipped with forward & reverse rewinding function, the LTD-650C supports flexible roll processing.



Key Application Industries

1. Printing & Packaging Industry: For rewinding and inspecting printed labels, flexible packaging films, carton packaging materials, and self-adhesive stickers after printing.
2. Label & Sticker Industry: Ideal for post-press processing of blank or printed label rolls, barcode labels, and decorative stickers, ensuring perfect roll alignment for subsequent die-cutting or slitting.
3. Plastic & Film Industry: Suitable for rewinding BOPP, PET, PVC, PE films, protective films, and other functional films, with precise tension control to avoid material damage.
4. Textile & Non-Woven Industry: Used for rewinding and inspecting non-woven fabrics, textile tapes, elastic bands, and other flexible textile materials.
5. Electronic & New Energy Industry: For processing flexible printed circuits (FPC), insulating films, battery separator films, and other electronic functional materials.
6. Medical & Hygiene Industry: Suitable for rewinding medical packaging films, disposable hygiene product materials, and other clean, thin flexible substrates.
7. Adhesive Tape Industry: Ideal for rewinding and slitting auxiliary processing of various adhesive tapes, double-sided tapes, and masking tapes.

Specification

Max.Unwind diameter	400mm
Max.Rewind diameter	400mm
Allowable weight 3	30kg
Rewinding speed at beginning	40m/min
Power supply	220 V

Packing&Delivery

• Wooden box packing
• Lead time 15-20 days

How to select the right rewinding machine with counting function ?

1.What is the roll material and the weight ?

2.What is the roll max. diameter

3.What is the roll material width ?

4.What is the paper core inner diameter ?

5.Is the material transparent ?

6.What rewinding speed do you request ?
