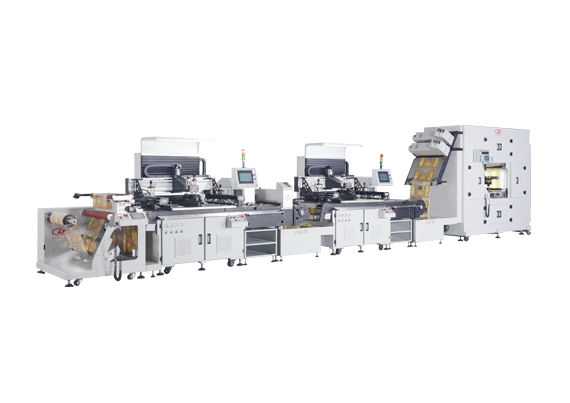

Automatic Roll to Roll Silk Screen Printing Machine
Machine Description:

The Automatic Roll to Roll Silk Screen Printing Machine is designed to print on film material in roll, such as PET, PVC, PE, PV, PP film.

This screen printing machine is composed of a feeder, a printing unit and a hot air dryer.

The feeder has dust removal rollers, it is able to alarm when the roll material run out.

The printing unit table has vaccum to fix PET film in position to ensure printing accuracy. It is equipped with three photocell sensors for automatic registration.

The hot air dryer has 30M, 60M and 80M length pass for option. It is able to cool and wind cured film into a roll after being dried.

High level of automation, only one people can operator the the whole printing line.

High printing accuracy, multi color overprint can be done on the machine.

High productivity, production capacity equal to six sets of semi-automatic screen printing machine.

Description:

LTA-3040 roll to roll heat transfer printing machine is mainly composed of a feeder, a printer and a hot air dryer. Its max.printing  size is 300x400mm, max.web width 320mm, max.printing width 300mm, max.printing length 400mm. The hot air dryer inside loop 30m length. UV dryer can be added to the line. LTA-3040 has an automatic register system with 3 sensors to ensure high printing precision in multi color printing.

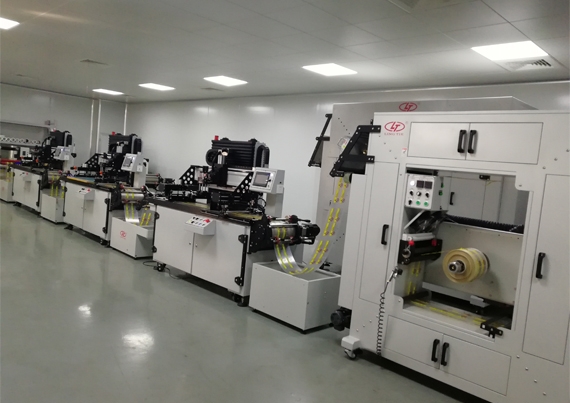

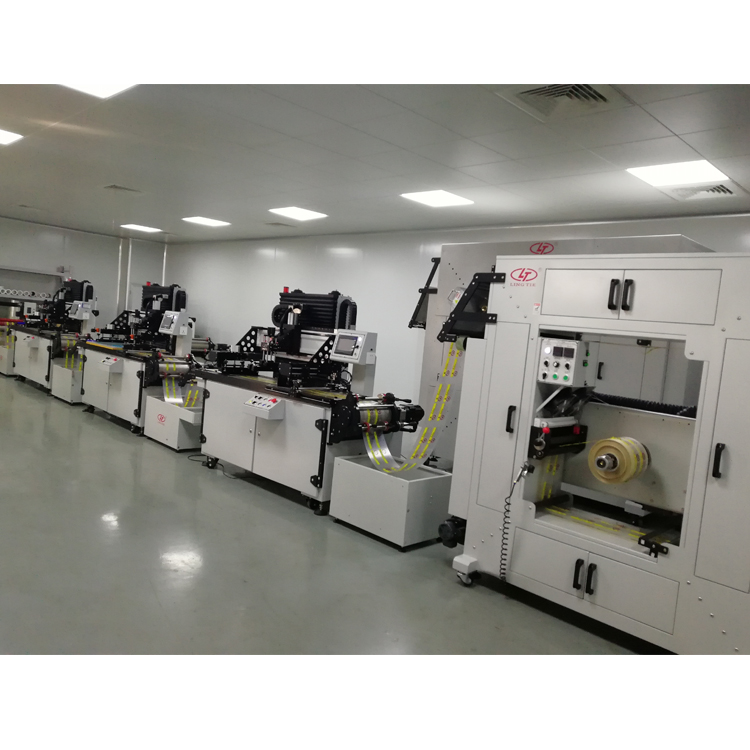

Lingtie multi color continuous screen printing machine ,1-N color , can be combined freeely . It can be one color printing or multi color printing at same time

The printing line dimension is 12.38x0.98x1.98 (LxWxH).

Main features:

1.  3-inch diameter air shaft for loading substrate roll.

2.  Feeding speed can be adjusted by stepless speed control motor.

3.  Unwinder with tension control.

4.  Splice station for film connection.

5.  Machine with static elimination.

6.  Double-side dust removal for the substrate.

7.  Automatically stop and alarm when the substrate roll is run out.

8.  Japan brand servo motors to ensure precision and stability.

9.  Japan brand PLC and frequency converter for machine control.

10. English touch screen control panel.

11. The machine with punch device, it can punch square holes on the substrate to replace printed sensor marks.

12. Vacuum table, white light lamps under the table for printing quality inspection.

13. Three photocell sensors, one for sensor mark, two on the right & left of screen clamps for web guide.

14. Inner loop length 30-meter.

15. 2-side heating and each side temerature can be controlled separately.

16. Substrate conveying speed can be adjusted.

17. Automatic rewinding the substrate after drying process.

18. Wheels in machine bottom for easy moving.

19. Machine body surface is painted by electrostatic spraying, resistant to rusting.

Roll to Roll Heat Transfer Printing Machine LTA-3040
