Roll to Roll Heat Transfer Label Printing Machine

Roll to roll heat press screen printing machien. The model:LTA-5060 with power 3KW.
  • Brand:

    Lingtie
  • Item NO.:

    LTA-5070
  • Payment:

    T/T, T/C, Paypal, Western Union...
  • Price:

    $45000/set
  • Shipping Port:

    Xiamen, China
  • Lead Time:

    20 days after advanced payment
Product Detail


Overview

Quick Details


Warranty:
1 year
Color & Page:
Single Color
Certification:
SGS CE ISO9001
Usage:
Paper Printer, Label Printer, Card Printer, Tube Print
Plate Type:
Screen Printer Printing material:
PET film and heat transfer paper
Key Selling Point:
High-accuracy
Automatic Grade:
Automatic
Voltage:
220
Place of Origin:
Fujian, China
Printing color:
Multi Colors
Printing speed:
0-6000T/h
Brand Name:
LINGTIE After-sales Service:
 Online support, Video technical support, Field installation
Weight:
600KG Max.paper width:
520mm
Packaging & Delivery

Packing:  seaworthy suitable packing for long distance

Supply Ability:20 Set/Sets per Month

Lead Time :

Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated


   Video Description




Specification


Feeding Machine
Power
KW
0.3
Electricity voltage
V/HZ
220/50
Dimensions
mm
1100x1080x1200(LxWxH)

                                                                                                                                                                                                                                                                                                                                  Screen Printing Machine
Max.web width
mm
520
Max.printing size
mm
500x700
Printing speed range
pcs/h
0--2500
Overprint tolerance
mm
+/-0.01
Substrate thickness
mm
0.02--0.5
Max.aluminium frame size
mm
800x1000
Air source
mpa
0.4--0.6
Power
KW
3
Electricity voltage
V/HZ
220/50
Dimensions
mm
2950x1160x1650 (LxWxH)

                                                                                                                                                                      Hot Air Dryer
Power
KW
22
Electricity voltage
V/HZ
380/50
Temperature
room temp.---200
Chamber pass length
m
60
Heater
pcs
4
Dimensions
mm
2830x1060x2150 (LxWxH)


Introduction:

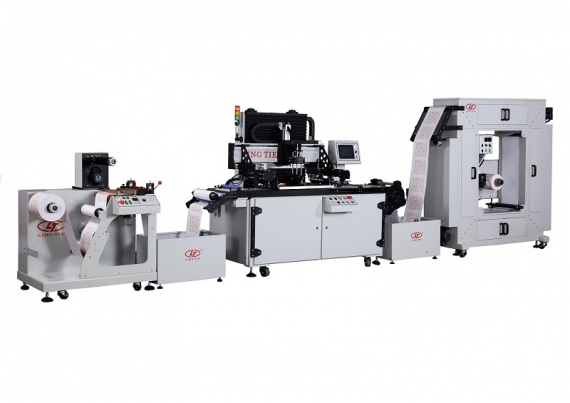

The LTA-5070 roll to roll heat transfer label printing machine is specially designed for heat transfer label printing in roll form. The printing line is comprised of a feeder, a screen printing unit, a hot melt powder applicator and a hot air dryer. Usually it print heat transfer labels on PET film, printing on heat transfer paper also available with it. The machine can print solvent ink, water base ink and plastisol ink.

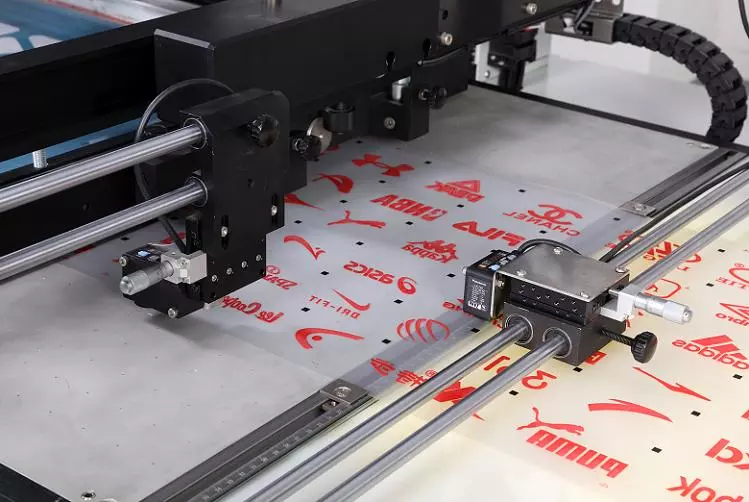

LTA-5070 roll to roll heat transfer label printing machine with tension control, dust cleaning, static eliminating, vacuum table, inspection glass table, roll splicing table, servo motor, automatic register system, 3-inch Air shaft. The hot air dryer inner pass length 60 meters.

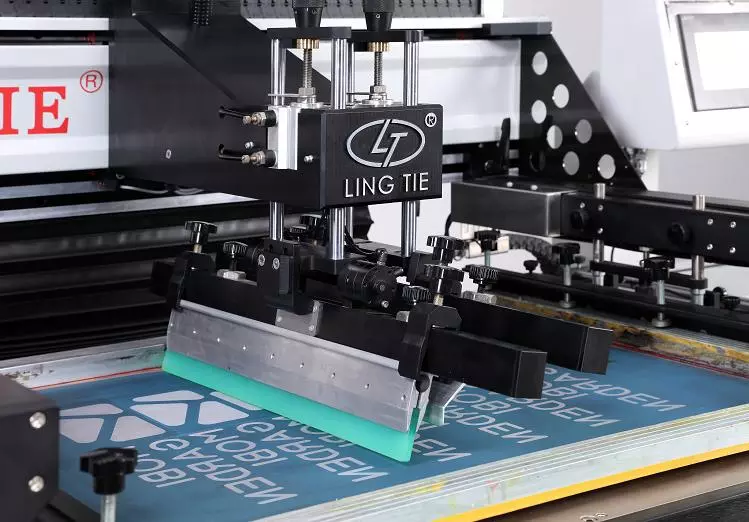

The machine is single printing station, it print both one color and multicolor labels. For multicolor label printing, we print sensor marks on the film for registration. This machine is low energy consumption, high printing capacity and high precision, only one operator, save production cost.


We also offer rewinding & slitting machine and sheet cutting machine to cut the printed roll into narrow roll label or single piece label

Technical parameter:

Model No.

LTA-5070

Screen Frame Area

800x1000mm

Max. Print Area

500x700mm

Max. Paper Width

520mm

Printing Speed

0-6000 print/min.

Power

Main Drive Motor

0.75kw

Pulling Drive Motor

1.5kw

Air Suction Motor

0.3kw

UV Dryer for Option

4.8kw/pc

Machine Weight

Net Weight

1000kgs

Gross Weight

1200kgs

Supply Voltage

220V 15A(single-phase power)

Remark:can be changed with your need

Machine Size

L2850 x W1160 x H1650 mm

Measurement

L3000 x W1365 x H1800 mm

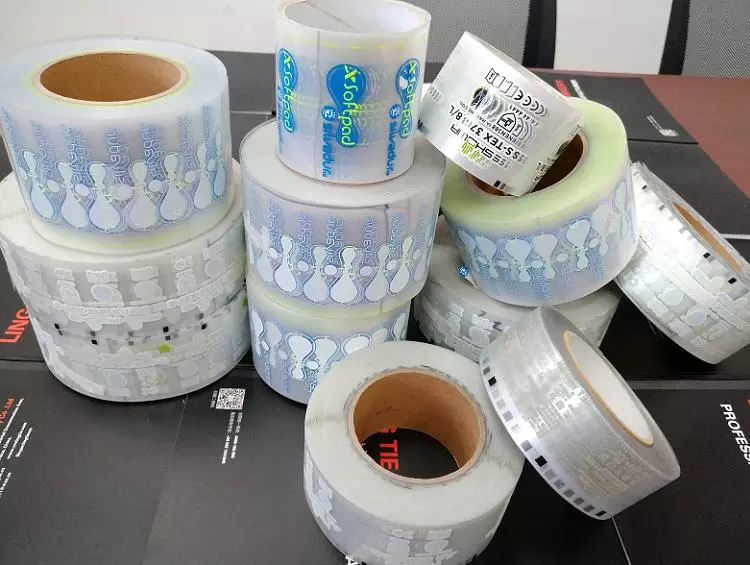

Printed samples:
