Adhesive Sticker Label Automatic Roll to Roll Screen Printing Equipment
Brand:
LingtieItem NO.:
LTA-5070Payment:
T/T, T/C, Paypal, Western Union...Price:
$45950/setProduct Origin:
XiamenShipping Port:
Xiamen, ChinaLead Time：
20 days after advanced payment
Overview
Quick Details
|
Warranty: |
1 year |
Color & Page: |
Single Color |
|
Certification: |
SGS CE ISO9001 |
Usage: |
Paper Printer, Label Printer, Card Printer, Tube Print |
|
Plate Type: |
Screen Printer |
Printing material: |
PET film and heat transfer paper |
|
Key Selling Point: |
High-accuracy |
Automatic Grade: |
Automatic |
|
Voltage: |
220 |
Place of Origin: |
Fujian, China |
|
Printing color: |
Multi Colors |
Printing speed: |
0-6000T/h |
|
Brand Name: |
LINGTIE |
After-sales Service: |
Online support, Video technical support, Field installation |
|
Weight: |
600KG |
Max.paper width: |
520mm |
Packing: seaworthy suitable packing for long distance
Supply Ability:20 Set/Sets per Month
Lead Time :
| Quantity(Sets) | 1 - 1 | >1 |
| Est. Time(days) | 25 | To be negotiated |
RFID Antenna Screen Printing Machine
This machine is used to print RFID antenna on PET film in roll form.
It is an automatic printing line composed of a feeder, a printing unit and a hot air dryer, UV dryer is available for option.
The machine is equipped an automatic register system with 3 sensors, it ensures the machine capable of doing overprint in high accuracy.
Making the antenna by screen will not cause pollution to water.
Roll to Roll Heat Transfer Printing Machine LTA-5060
|
Model No. |
LTA-5060 |
|
|
Screen Frame Area |
800x1000mm |
|
|
Max. Print Area |
500x600mm |
|
|
Max. Paper Width |
520mm |
|
|
Printing Speed |
0-6000 print/min. |
|
|
Power |
Main Drive Motor |
0.75kw |
|
Pulling Drive Motor |
1.5kw |
|
|
Air Suction Motor |
0.3kw |
|
|
UV Dryer for Option |
4.8kw/pc | |
|
Machine Weight |
Net Weight |
1000kgs |
|
Gross Weight |
1200kgs |
|
|
Supply Voltage |
220V 15A(single-phase power) |
|
|
Remark:can be changed with your need |
||
|
Machine Size |
L2850 x W1160 x H1650 mm |
|
|
Measurement |
L3000 x W1365 x H1800 mm |
|
|
Specification
|
|||
|
Feeding Machine
|
Power
|
KW
|
0.3
|
|
Electricity voltage
|
V/HZ
|
220/50
|
|
|
Dimensions
|
mm
|
1100x1080x1200(LxWxH)
|
|
|
Screen Printing Machine
|
Max.web width
|
mm
|
520
|
|
Max.printing size
|
mm
|
500x600
|
|
|
Printing speed range
|
pcs/h
|
0--2500
|
|
|
Overprint tolerance
|
mm
|
+/-0.01
|
|
|
Substrate thickness
|
mm
|
0.02--0.5
|
|
|
Max.aluminium frame size
|
mm
|
800x1000
|
|
|
Air source
|
mpa
|
0.4--0.6
|
|
|
Power
|
KW
|
3
|
|
|
Electricity voltage
|
V/HZ
|
220/50
|
|
|
Dimensions
|
mm
|
2950x1160x1650 (LxWxH)
|
|
|
Hot Air Dryer
|
Power
|
KW
|
22
|
|
Electricity voltage
|
V/HZ
|
380/50
|
|
|
Temperature
|
℃
|
room temp.---200
|
|
|
Chamber pass length
|
m
|
60
|
|
|
Heater
|
pcs
|
4
|
|
|
Dimensions
|
mm
|
2830x1060x2150 (LxWxH)
|
|
-

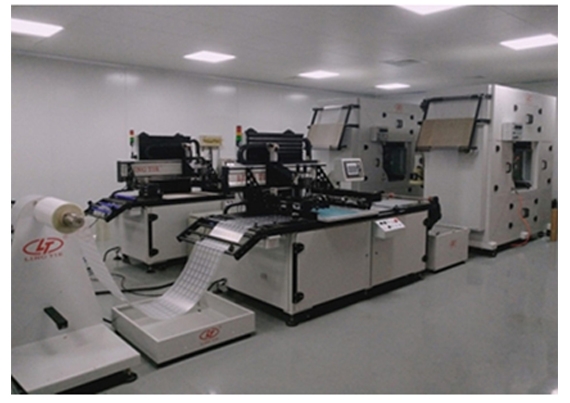

Roll to Roll Screen Printing Machine
This is specially-designed web-fed screen printing machine for flexible stock, in a roll such as RFID, Electronics-FCB (Flexible Circuits Board), Membrane Switch, IMD and Diffusers, Heat transfer paper/film, rubber vulcanization, Stickers, OPP, PVC, PC, PET, Plastic Leather, Aluminum Foil and so on.
-
PET Film Screen Printing Machine
Find here the PET Film Screen Printing Machine which provides high-quality printed product to help any silk screen printing company the high demands to come true.
-
Heat Transfer Label Screen Printing Machine
The Cost-optimal Heat Transfer Label Screen Printing Machine comes from the Lingtie (Xiamen ) Machinery manufacturer, it has 15 years of professional printing experience.
-
RFID Screen Printing Machine
This RFID Printing Machine is used widely on some high precision labels such as RFID Antenna, adapt to the electronics industry. RFID is short for Rodia Frequency Identification.
-
Roll Screen Printing Machine Samples
All of the Samples come from the customer's factory, and we could send all kinds of samples to you if possible.
-
Automatic Roll to Roll Screen Printing Machine
The web-fed roll to roll screen printing press with powder machine widely applied in Non-woven fabric and garments industry.
