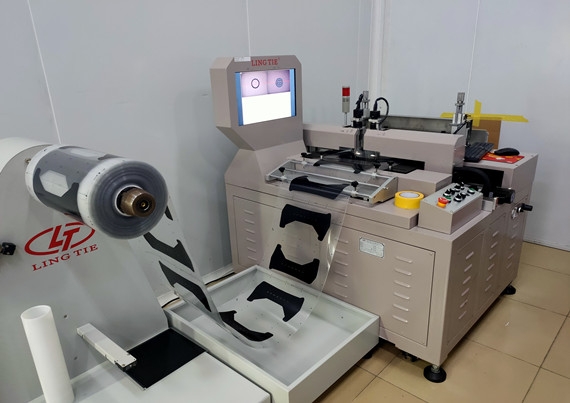

Automatic Roll to sheet Punching cutting Machine

Automatic Roll to sheet Punching cutting  Machine

With two punching head and cut the roll material into piece while punching .

  • Brand:

    Lingtie
  • Item NO.:

    ZLG-500 B
  • Payment:

    T/T 30% as deposit ,70% balance pay before sh
  • Market Price:

    $15000
  • Price Range:12800 - 15000/$1
  • Product Origin:

    China
  • Shipping Port:

    Xiamen ,China
  • Lead Time:

    30days
Product Detail

The double-head automatic punching machine system captures the sampling graphics within the visual range of the camera through the computer. Analyze and control the displacement of transmission parts, and punch the pneumatic parts. It meets the requirements of customers with fast punching speed, high precision and simple operation.




Machine features
☆ Simple operation: the working mode set directly on the computer monitor.

☆ High precision: the camera automatically finds the figure in the recognition range, computer analyzes and controls the movement.

☆ Fast speed: the camera reflects the time is short, as soon as the figure is found, the position of the figure can be punched.

☆ Simple operation: the working mode set directly on the computer monitor.

☆ Powerful: Sampling chart can be saved, can be directly called, computer system, real-time software upgrade.

☆ Quality assurance: The main components such as pressure regulating valve, cylinder, solenoid valve, linear guide rail are all of high quality to ensure the service life.

☆ High recognition degree: The special light source can automatically identify the positioning hole diagram of materials with high reflection and high blackness, etc., and the incomplete icons can be automatically compensated and recognized.



Product Parameter
Precision
mm
≤ 0.015mm
Punching speed
T/second
2T/second
Max.Punching force
N
1200N
Hole diameter
mm
0.5mm – 5mm
Can be customized
Material thickness
mm
0.05mm –0. 5mm
Depend on material
Pressure
MPA
0.4 - 0.8MPA
