High precison CCD screen printer with UV curing

Automatic screen printing machine with CCD optical vision alignment system can effectively improve the printing accuracy, improve the accurate identification of the printing image, avoid the printing results of movement, deflection, blurred edge. Higher precision optical vision alignment system, identification equipment application, algorithm improvement, can further improve the accuracy of screen printing, improve the automation level of printing production
  • Brand:

    Lingtie
  • Item NO.:

    LTA-5070
  • Payment:

    T/T 30% as deposit ,70% balance pay before sh
  • Price:

    $11730
  • Price Range:98000 - 120000/$1
  • Product Origin:

    China
  • Color:

    silver white
  • Shipping Port:

    Xiamen ,China
  • Lead Time:

    30days
Product Detail

Screen printing machines are called universal printing machines, which can print on a variety of substrates, with excellent printing quality and accurate images and text. Screen printing originated in my country and has a history of more than 2,000 years of development and application. Screen printing can be applied to a variety of materials. Screen printing machine is also a printing machine with the highest degree of automation in the printing industry at home and abroad. The equipped optical vision alignment system further improves the printing precision of the printing machine. The screen printing machine can realize multi-color printing, and the visual alignment system is matched with the screen overprinting positioning marks of different printing colors, which can carry out high-accuracy automatic production. The best screen printing machine can control the position adjustment time within 1 second, and the position accuracy can reach ±0.01mm. The cooperation of CCD and industrial telecentric lens, coaxial point light source and other visual equipment can further improve the accuracy, the accuracy can be to 0.003mm, and a more accurate printed image edge can be obtained.

Application range: Variety kinds of  printing , especially good at print RFID/electronic label printing on transparent or semi-transparent material .

1. Suitable for printing heart transfer labels and stickers, self-adhesive labels, , nameplate and non-woven fabric etc.

2. Printing materials in roll, PVC, PET, PP, PC, PE, BOPP, paper, non-woven fabric, etc.

3. Japan brand servo motors to ensure precision and stability.

4. Japan brand PLC and frequency converter for machine control.5. 10-inch touch screen control panel in English language.

5. Equipped with CCD optical vision alignment system ,further improves the printing precision of the printing machine

6. Servo motors drive film feeding and printing head action to ensure high accuracy.

7. Vacuum table, backlight lamps under the table for printing quality inspection.

8. Lamp cover on top of printing table offering good vision for printing operation.

9. Wheels in the bottom for easy moving.

10. Machine body surface is painted by electrostatic spraying, resistant to rusting


Printing Area 500*700mm
Printing Speed 0~2500 times/hr.
Screen Frame Area 800*1000mm
Max. Substrate Width 520mm
Registration Accuracy ±0.01mm
Power  220V, 3KW
Frame Adjusting Variable 60mm
Printing Substrate Thickness 0.02~0.5mm
Weight 700kgs
Overall Dimensions 2850*1160*1650mm (L*W*H)

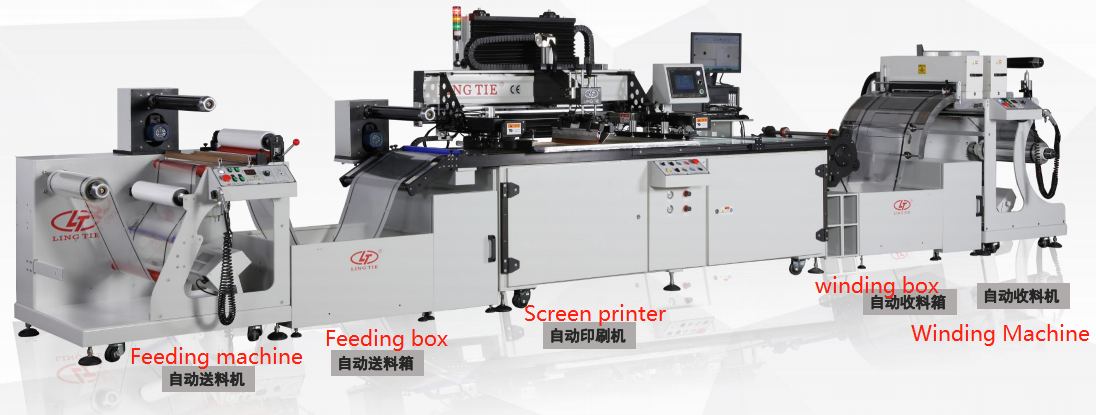

This set of CCD Screen printing Machine mainly combined with a feeding machine, feeding box , a screen printer , winding box, UV dryer and winding machine .

There are different feeding machine for option , UV dryer is also can be assembled on printer or assembled on winding machine.

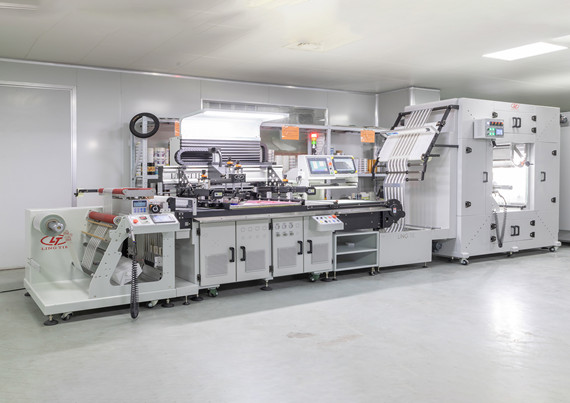

Optional Configuration 1.

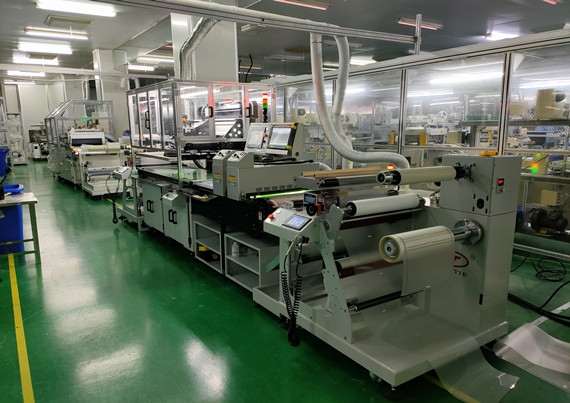

Optional Configuration 2.

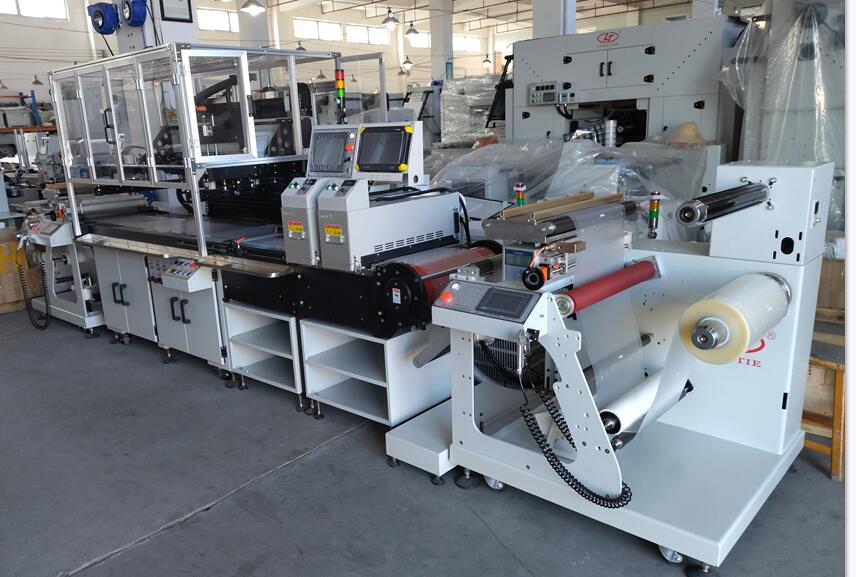

Optional Configuration 3.


Following are the Real printing Data for precision  :

LINGTIE Machine advantages:


  • The printing head of the printing machine is made of solid material, which was processed for dozens of hours by CNC processing equipment.
  • There are servo motors on both sides of the printing machine frame, and the servo motor + color calibration, printing accuracy can reach + -0.01mm.
  • The servo motor of the printing machine is imported from Yaskawa Japan (1.3KW).
  • All accessories are processed by multiple processes and never rust.
  • Human-computer screen assembled according to people's habits,
    It is easy to operate when setting the screen directly.  Avoid  ink, solvent to demage the screen.
     Latest upgrade operation system ,We can expand 30 languages to internationalize with
    10-inch screen.
