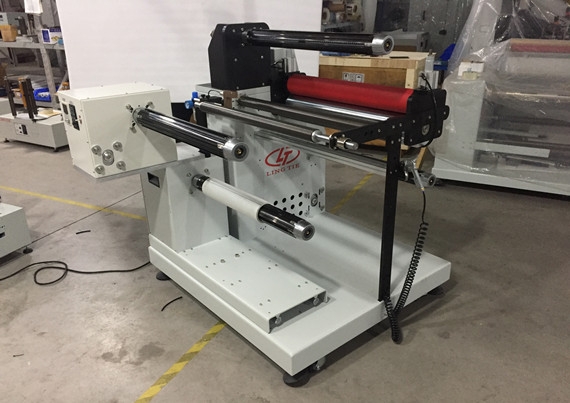

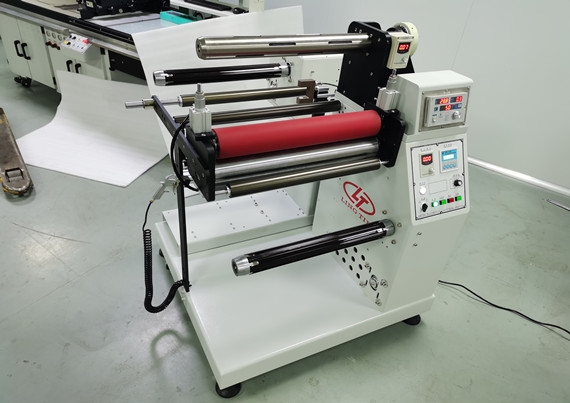

Rewinding laminating machine

Automatic Rewinding machine with laminating and protect film peel off function .
  • Item NO.:

    LTD-600 B
  • Payment:

    T/T
  • Market Price:

    $8000
  • Price Range:4800 - 7500/$1
  • Product Origin:

    China
  • Color:

    Silver white
  • Shipping Port:

    Xiamen ,China
  • Lead Time:

    15-30 days after advance payment
Product Detail



Machine features:

1. Unwinding and rewinding shaft is air shaft, 3 inch diameter, 600mm length.

2. Unwinding shaft is in the back of the machine, installed with a mechanical tension control ( powder brake for tension control is optional )
3. Rewinding shaft is in the front of the machine, installed with a motor for driving the roll.
4. The rewinding shaft can rotate in two directions, clockwise and counter clockwise.
5. Maximum unwind/rewind roll diameter 600mm.
6. There is a deviation rectifying system with sensor for web edge position control.
7. The machine can automatically stop when the roll in unwinding shaft is finish.
8. More functions are available for option to be added:
--slitting function (razor blade or circular blade)
--count meter function
--semi-automatic tension controller
--uniform rewinding speed controller
--film surface dust cleaning function
--corona treatment function
--rewinding roll press device

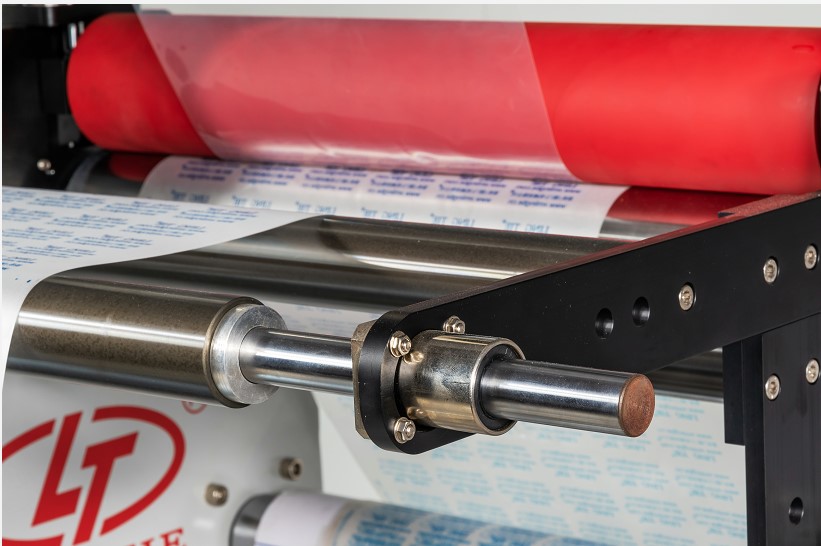

--laminating function
--splicing table
--lamp for label inspection




Size Information:

PARAMETER FOR FILM REWINDING COUNTING MACHINE
Rewind machine Model
LTD-400B LTD-600B LTD-700B
Max. web Width 400mm 600mm 700mm
Unwinder rolls diameter 650 mm 650 mm 650 mm
Rewinder rolls diameter 650 mm 650 mm 650 mm
Rewinding speed 40-80 meter / min 40-80 meter / min 40-80 meter / min
Max. Allowable weight 50 kg 70 kg 70kg
Power 750w 1500w 1500w
Power voltage 220 V 220 V 220 V
Machine size L950*W1010*H1120 L950*W1010*H1120 L950*W1010*H1120
HS CODE 8477800000 8477800000 8477800000


Packing & Shipping

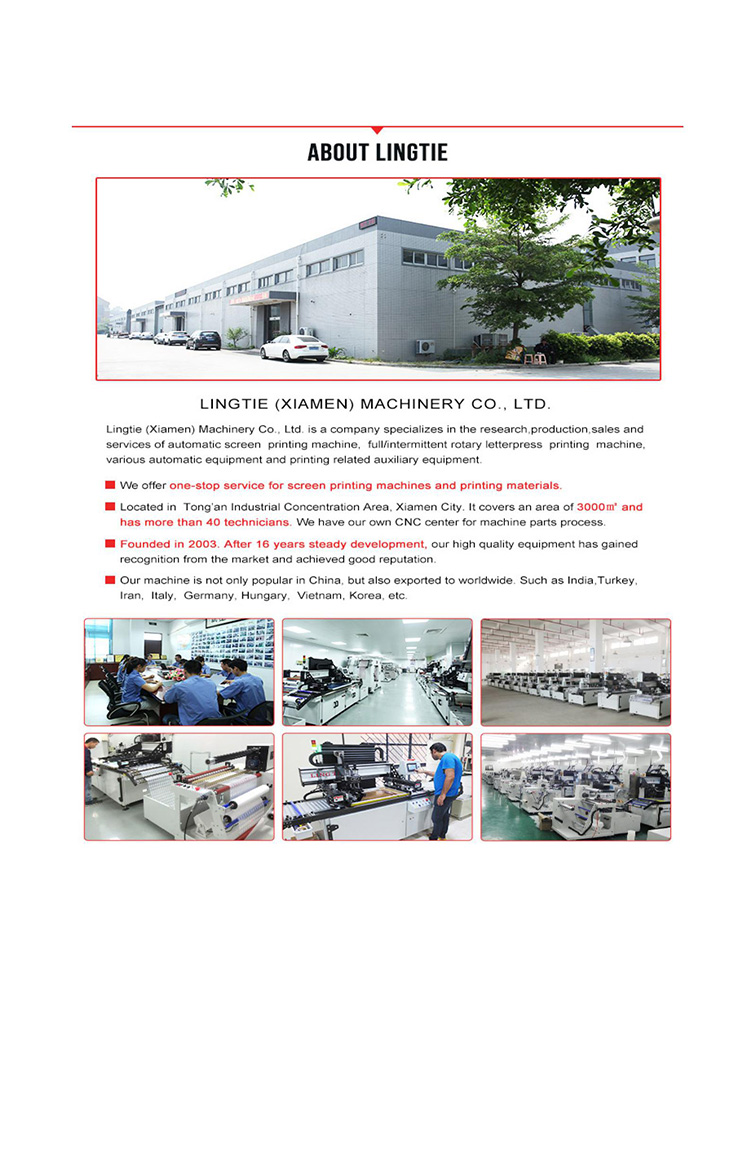

Company Introduction

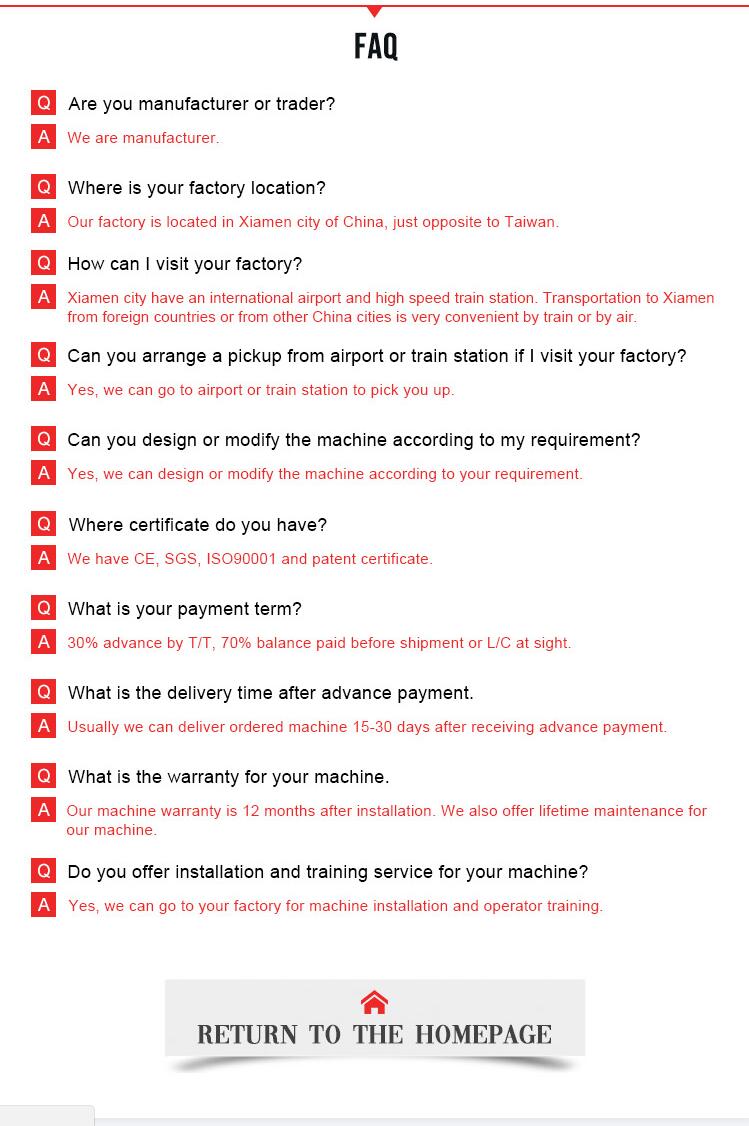

FAQ
