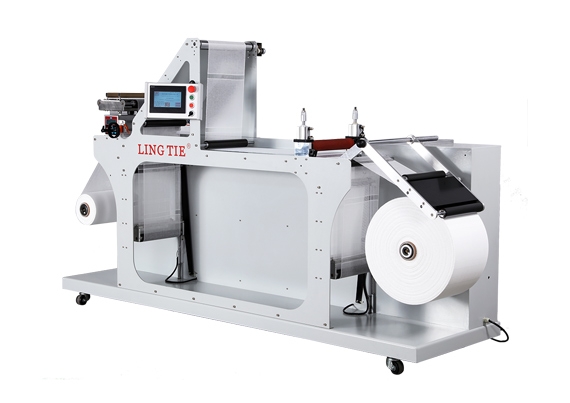

Roll Rewinding Machine
Brand:
LingtieItem NO.:
LTD-800Market Price:
$6666Product Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
20 days after received 30% payment
Description details for OEM Doctoring Rewinding Machine
1. The feeding tension and rewinding tension are required to be consistent (range: 1-50 kg )
2.Increase the display screen to easily set the running line speed and the sliding distance during the stop
3.Servo control system ensuring perform the shutdown operation to avoid inertia recoil in high-speed operation
Special Specification for the table top Rewinding Machine
Speed :100 m / min
Power Supply: 380 v, three-phase, 2.5 kW
Roll diameter: Up to 800 mm
Core Diameter – 3” Unwind to 3” Rewind
Allowable weight: 80 kg
Three motors and frequency inverter
Gross Weights: 650 kg
Machine size : 900 x 1700 x 2700 mm
Features for the Aluminum Foil Rewinding Machine
- The Meter Counter
- Uniform speed function
- Automatic tension control
- Dust removal function
- inspecting bench
- Electrostatic removal
- web guiding device

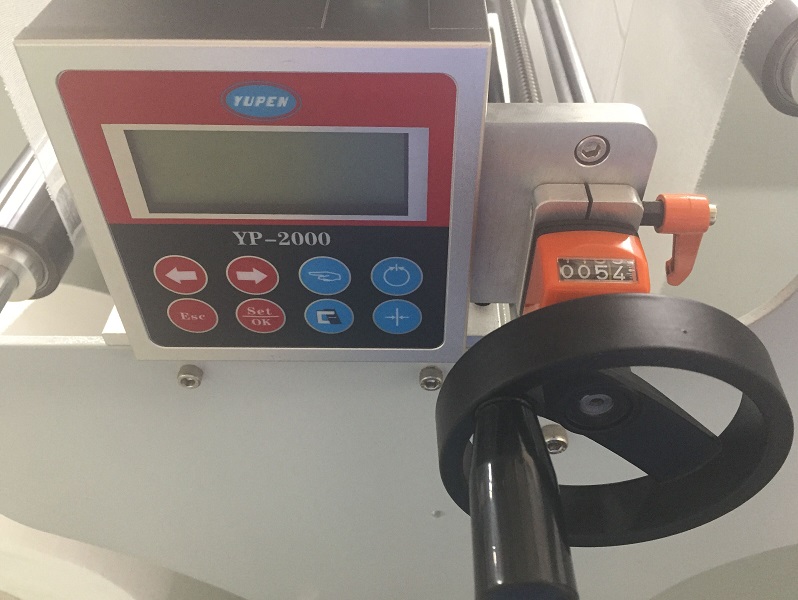

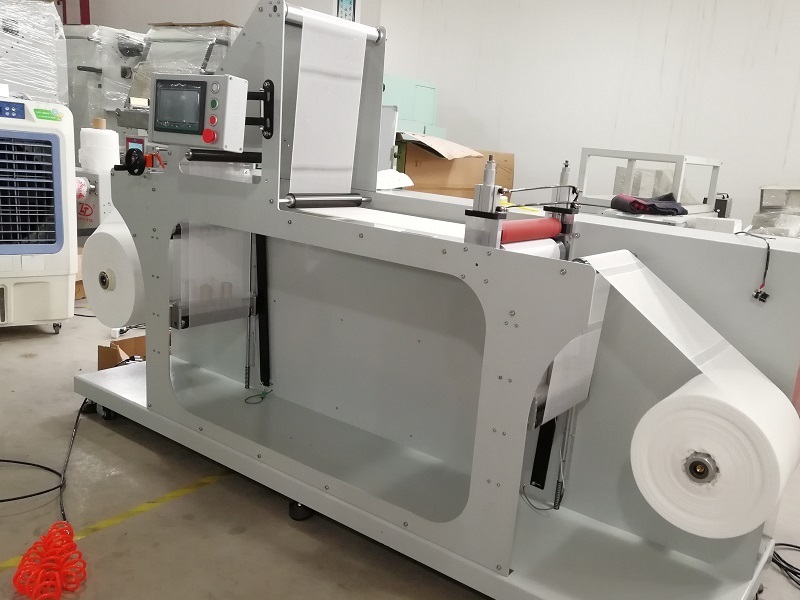

Detail images for the Doctoring Rewinding Machine
Deviation Correction distance controller for the deviation-correction Rewinding Machine

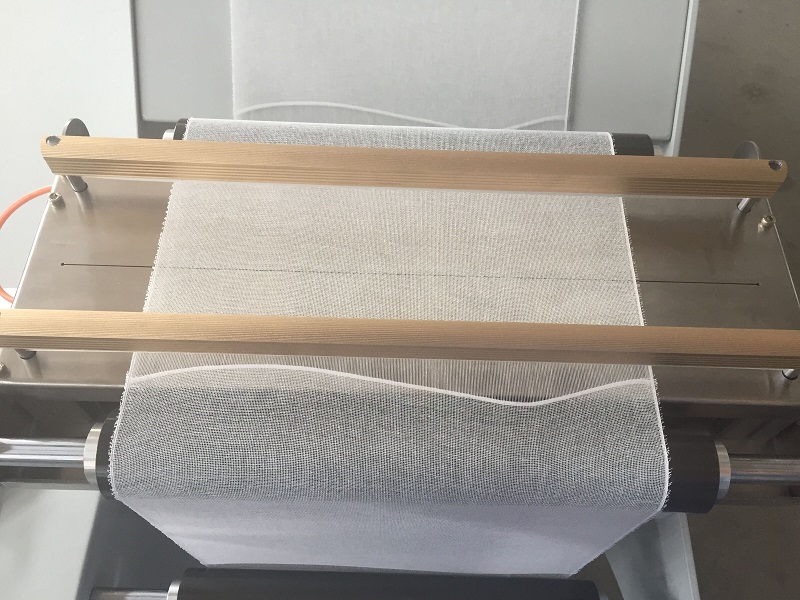

Anti-scratch Splicing Station
What're your demands of the Roll Rewinding Machine?
What's your special material do you rewind?
-
Winding Rewinding Machine
A Winding rewinding machine is a machine designed for making the unwinding edge straight, slitting the big roll to small rolls. This machine also used for ink jet printing.
-
Automatic Rewinding Machine
A rewinding machine is a machine designed for making the unwinding edge straight, slitting the big roll to small rolls.
-
Doctoring Rewinding Machine
An Automatic rewinding machine is a machine designed for making the unwinding edge straight, remove dust on the film surface. This machine also used for ink jet printing.
-
Rewinding laminating machine
Automatic Rewinding machine with laminating and protect film peel off function .
-
Label inspection rewinding machine
Label inspection rewinding machine with Interchangeable air shaft ,with the Angle of Inclination of inspection platform
