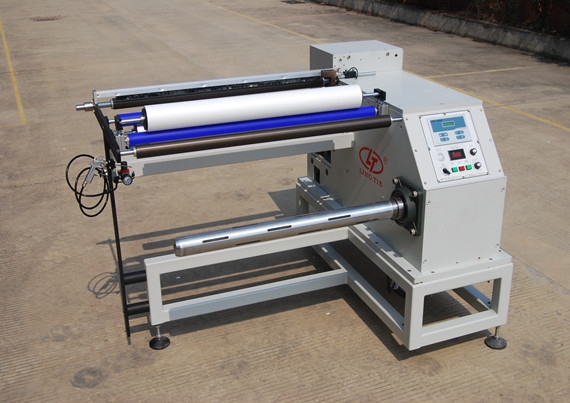

Jumbo Roll Rewinder
Brand:
LingtieItem NO.:
LTD-900 BPayment:
T/TMarket Price:
$9200Product Origin:
ChinaColor:
Silver whiteShipping Port:
Xiamen ,ChinaLead Time:
15-20 days after advance payment
Machine features and configuration:
- Japan Mitsubishi convertor for free control of winding speed;
- Imported high quality motor and speed reducer;
- DC Edge position control system;
- Ultrasonic Sensor which is able to sense transparent material;
- Imported good quality bearings to ensure the machine able to run full day;
- Magnetic powder brake for unwinding tension control and winding tightness adjustment;
- Air shafts for unwinding and rewinding shaft;
- Automatically stop and alarm when the material deviation is out of limit or the material rewinding is finished;
- The machine is included uniform speed device and Automatic meter counter
- Electrostatic painting and stoving varnish on the machine body;
- All operation manual in English.
-
Automatic Jumbo roll rewinding machine | model LTD-900B | |||
Max. web width | mm | 900 | ||
Min. web width | mm | 50 | ||
Rewind & Unwind shaft diameter | inch | 3 | ||
Speed | m/min | 40-80m/m | ||
Max. Allowable weight | kg | 150 | ||
Motor Powder | w | 1500 | ||
Powder Supply | v | 220 | ||
G.W. | kg | 580 | ||
Magnetic Tension | Tension adjustable | 1 set | ||
Web guide | Deviation correction | 1 set | ||
Mach Size | mm | L1550*W1400*H1350 |
How to select the right rewinding machine ? You only need to answer following simple questions :
1.What is the roll material and the weight ?
2.What is the roll max.diameter
3.What is the roll material width ?
4.What is the paper core inner diameter ?
We are looking forward to hearing from you
-
Winding Rewinding Machine
A Winding rewinding machine is a machine designed for making the unwinding edge straight, slitting the big roll to small rolls. This machine also used for ink jet printing.
-
Automatic Rewinding Machine
A rewinding machine is a machine designed for making the unwinding edge straight, slitting the big roll to small rolls.
-
Doctoring Rewinding Machine
An Automatic rewinding machine is a machine designed for making the unwinding edge straight, remove dust on the film surface. This machine also used for ink jet printing.
-
Roll Rewinding Machine
This customized Doctoring Rewinding Machine used for the medical gauze rewinding under the consistent tension by a Japanese professional enterprise.
-
Rewinding laminating machine
Automatic Rewinding machine with laminating and protect film peel off function .
