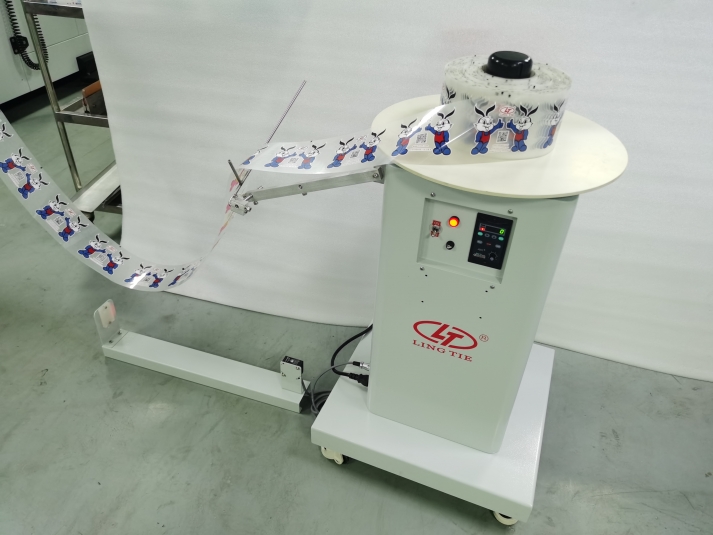

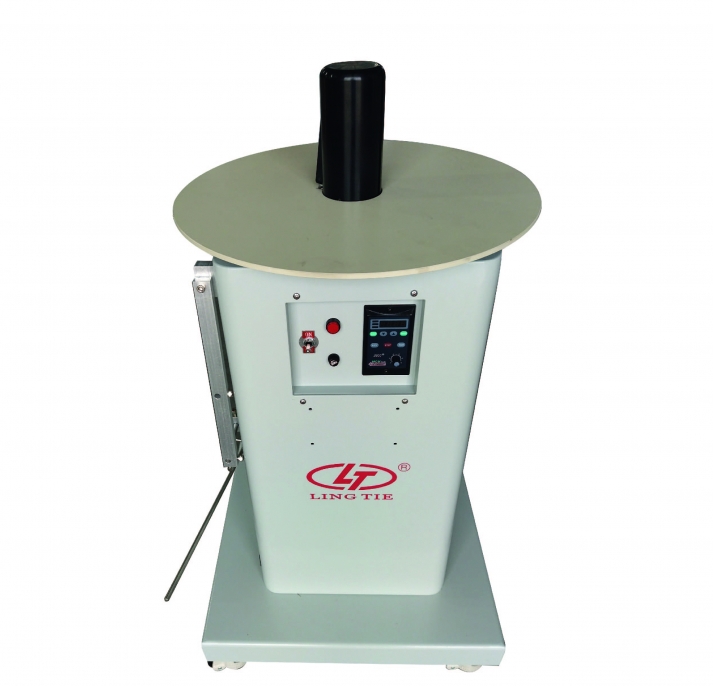

Unwinder and Rewinder for Roll material

Simple Unwinder and Rewinder machine with positive and negative rotational controls

Brand:
Lingtie
Item NO.:
LTE-450B
Payment:
T/T
Product Origin:
China
Color:
Silver white
Shipping Port:
Xiamen ,China
Lead Time：
15 days after receive the 30% payment

contact now

Product Detail

Main features

1. The machine is equipped with mobile casters, which are convenient for handling and shifting.

2. Material receiving and discharging function, one-button switch selection.

3. Mechanical spring shaft, convenient and quick to fix the tube core, and unloading.

4. Adopt speed regulating motor, the speed can be stepless adjustment.

5. The body adopts electrostatic spraying, which is durable and does not drop the paint.

6. Imported photoelectric switch, durable.

7. Reversible function, easy to choose the winding direction.

8. Can be connected to PLC or MCU external control start and stop.

9. Optional inverter, precise speed control, and a more stable start and stop.

10. The size of the feeding tray can be selected (φ 200-Q900) and the standard φ450.

11. OEM is available.

Model	LTE-450 B
Unwinder or Rewinder diameter	Standard 450mm ( can be custom made range 200mm to 900mm )
Uwind or Rewind shaft diameter	76mm
Weight	35kg
Motor power	60 w ( Can be customer made 60w-200w )
Power supply	1p AC 220 V
Dimension	L500W500H926mm
