Care Label Printing Machine

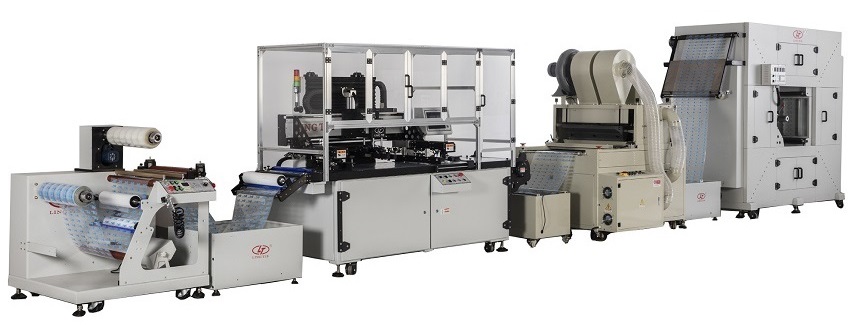

Product Name: The Care Label Screen Printing Machine

Application:

• For mass-printing label such as heat transfer label, washing label, garment label, clothing label mostly, Mobile phone touch screen, Solar cells, Flat screen televisions
• Touch panels, Circuit boards, Printed electronics, RFID, In-mould transfers switch panels
• Membrane switches, Flexible circuit boards, Miniature circuits on ceramics, Smart fabrics industry as well

Features

According to the printing speed 1500 impressions/hour, a stencil design has ten label patterns, six colors need to print, 8 hours a day, and 20k pcs labels can be printed in one day.

• High level of automation, only one worker operate the whole printing line
• High printing accuracy, 1-10 colors overprint can be done by the full automatic screen printing machine
• High productivity, production capacity equal to six sets of the semi-automatic screen printing machine
• Carry a vacuum table with air suction to fasten PET film to ensure overprinting precision
•  Equipped with three photocell sensors for automatic registration in X-Y directions, carrying the exclusive technology
• We have vacuum suction drawing technology, no need for crimping, and the wasted length is controlled within 2 mm.

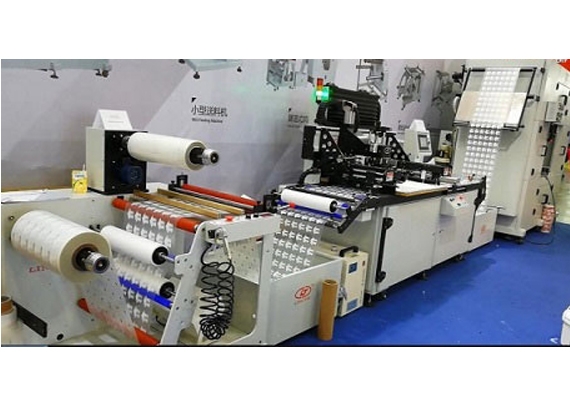

Multi-colors heat transfer label printing machine video in a client's field.

Specification:

Max.web width   420 mm
Max.printing size    300 x 400 mm
Max.aluminium frame size    600 x 700 mm
Printable Substrate thickness     0.02--0.5 mm
Printing speed range    0--8000 impression/h
Air Source           0.4-0.6 mpa
Powder 220v, 3KW, 15A
Dimensions 2500 x 1600 x 1100 mm

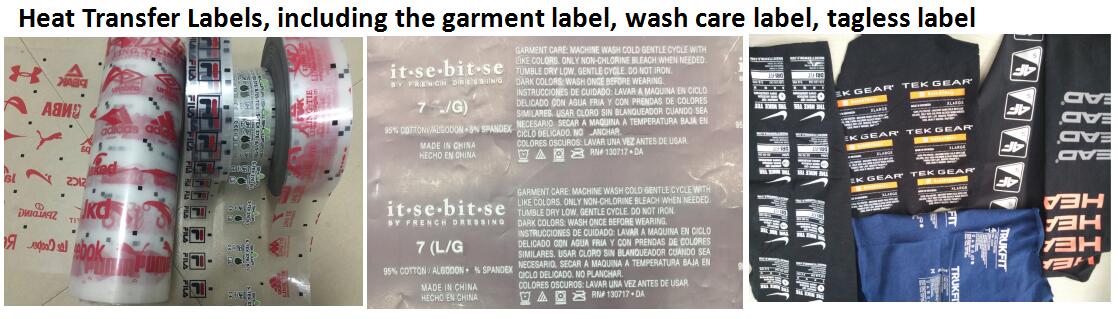

The care label/washing care label/garment label/clothing label for reference.
