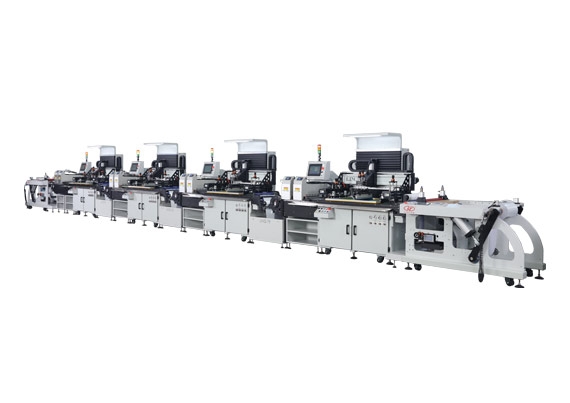

4 Color Screen Printing Machine Roll to Roll

Product Name: Four  Color Roll to Roll Screen Printing Machine

Material  Application Range

 All kinds of roll films, like PET, PVC, PC, PE, PP, and Roll Coated Paper, Leather,

Printing Label Range

 Heat Transfer Label, Electronic Alliances, Membrane Switches, Panels. Soft Circuit Board, IMD, IML, FPC, Rubber Vulcanization, Non-woven Fabric, Decal label for Cars, Ceramic, Decals, Adhesive Sticker, etc.

Product Description:

• 4-colors Fully Automatic Screen Printing combines with A feeding unit  + 4sets Screen Printing Station & LED or UV Dryer
• Yaskawa servo motor for film pitch feeding and no scratch.
• Mitsubishi PLC for machine control.
• Printing head horizontal movement by the servo motor.
• Vacuum table with air suction during the printing process.
• 3 sensors for the automatic register in X-Y directions to reach 0.01mm accuracy.
• Frame and printing head up-down by pneumatic.
• High precision rails and bearings for running parts.
• Pitch Feeding Roller and Glass Table
• Glass table for printing quality inspection and punching device either to add.
• Touch screen control panel in the English language, and other languages .
• Automatic reminding when the operation error occurs.
• Machine software can be upgraded if you need.

The parameter of the Roll to Roll Screen Printing Machine

• All models have right-to-left and left-to-right direction for option
• maximum printing area: 300 x 400mm
• maximum printing speed: 6000 impression/ hour
• max. screen frame area: 600 x 800mm
• power supply: 3 phase 380v, 3kw, 15A

Why choose us, we have the following advantages:

1) We have many different models with different print size for customer option.

Such as 300x400mm, 400x500mm, 400x900mm, 500x700mm, 500x1200mm, 600x800mm, 600x1600mm, 700x600mm, 800x1200mm, etc.

Other print size machine can be custom made according to customer needs if necessary.

2) We have rich of machine configurations to fit different industrial printing, to meet different budget.

3) All of the main electrical parts used in the printing machine are selected from good brands: Servo motor--Yaskawa, PLC--Mitsubishi, Convertor--Mitsubishi, Sensor--Panasonic.

4) We have exported our automatic roll to roll silk screen printing machine to more than 70 countries, our technical team is experienced for international service.
