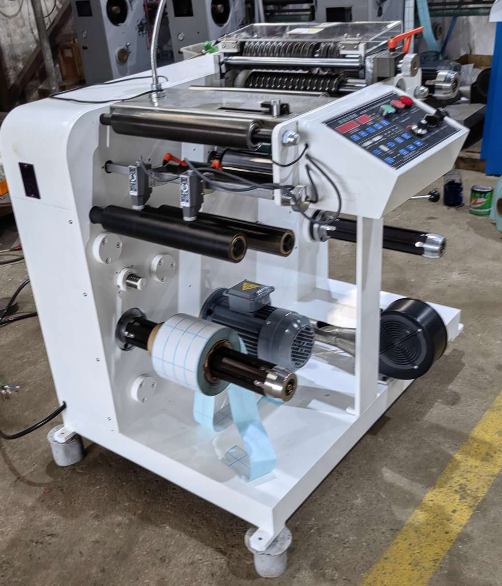

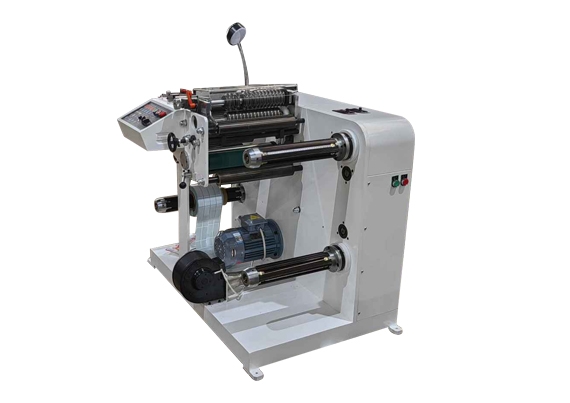

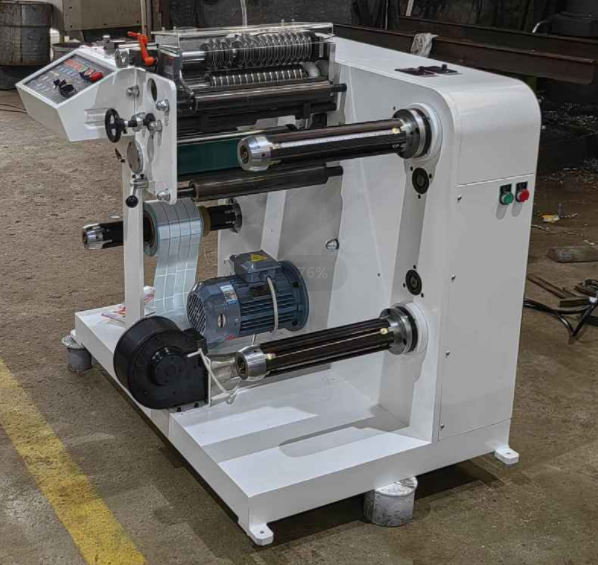

Auto slitting rewinding machine

Auto slitting rewinding machine ,Special roller blade for Suitable for all kinds of rolling materials slitting and rewinding .
  • Brand:

    Lingtie
  • Item NO.:

    LTD-600 B
  • Payment:

    T/T
  • Market Price:

    $5600
  • Price Range:4800 - 7500/$1
  • Product Origin:

    China
  • Color:

    Silver white
  • Shipping Port:

    Xiamen ,China
  • Lead Time:

    15-30 days after advance payment
Product Detail


Machine feature:


  • Automatic deviation correction system keep roll material rolling orderly .
  • Roller blade is durable for use and suitable for all kinds of roll material.
  • There are meter counting function for option when custom need.
  • 3inch air shaft for Unwind and rewind.
  •  There is a deviation rectifying system with sensor for web edge position control.
  • The machine can automatically stop when the roll in unwinding shaft is finish.
  • More functions are available for option to be added:
    --slitting function (razor blade or circular blade)
    --count meter function
    --semi-automatic tension controller
    --uniform rewinding speed controller
    --film surface dust cleaning function
    --corona treatment function
    --rewinding roll press device
    --laminating function
    --splicing table
    --lamp for label inspection


There are regular 4 models for option ,Following are the main specifiction

Model

LTD-400 B

LTD-600B

LTD-700B

LTD-900B

Max.Paper Width

400mm

600mm

700mm

900mm

Allowable Weight

50kg

70kg

70kg

150kg

Max Diameter

550mm

550mm

550mm

550mm

Power Supply

0.75kg

1kw

1kw

1.5kw

Tension

0-25

0-25N

0-25N

0-25N

Net Weight

280kg

350kg

380kg

500kg

Machine Size

(L950*750*1120)mm

(L1010xW950xH1120)mm

(L1010xW1000xH1120)mm

(L1450xW1300xH1200)mm
