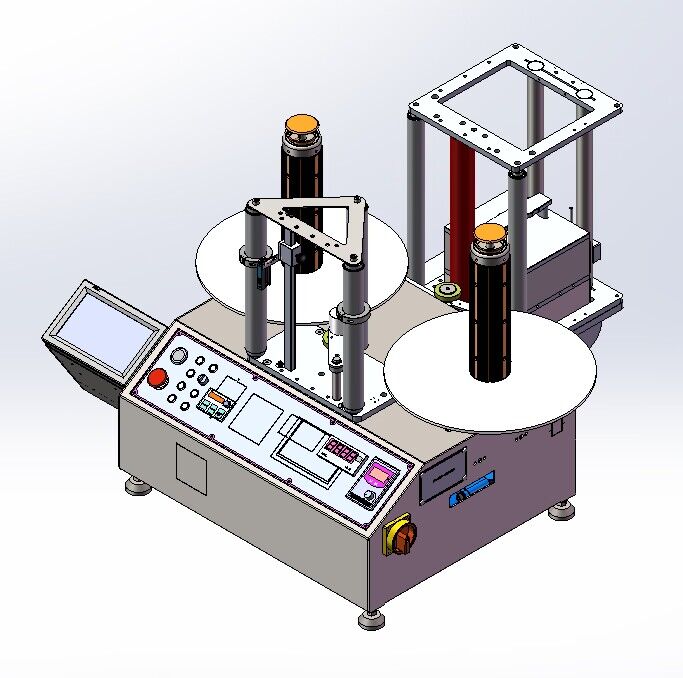

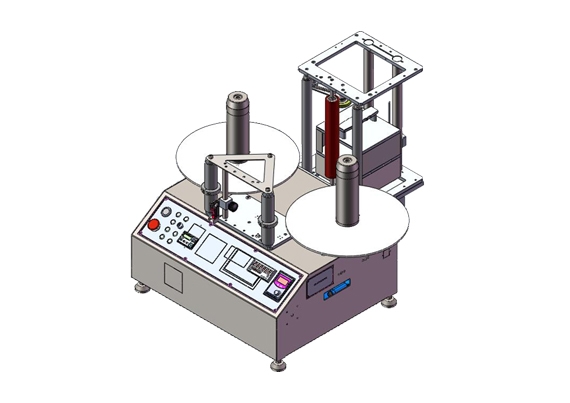

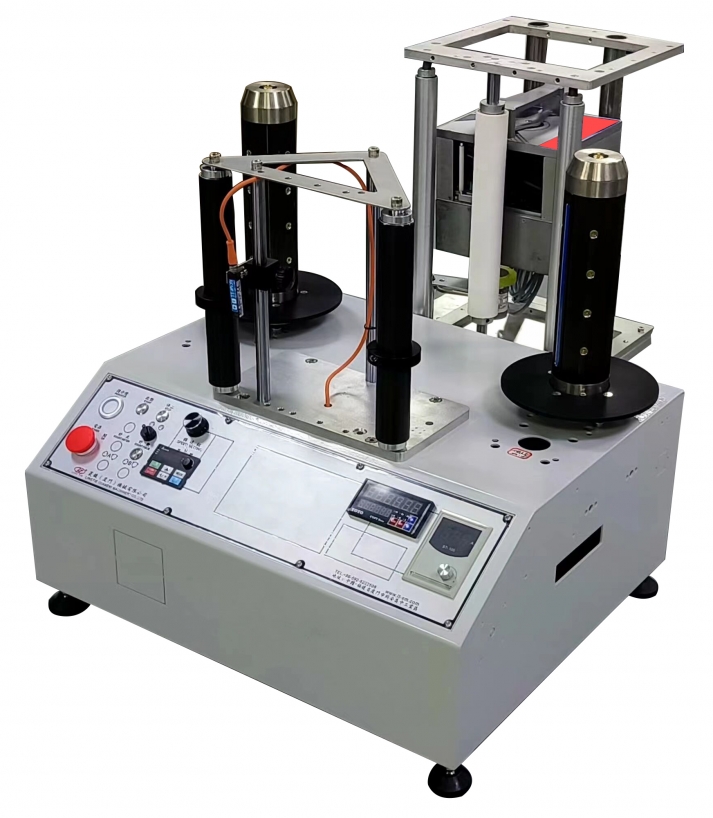

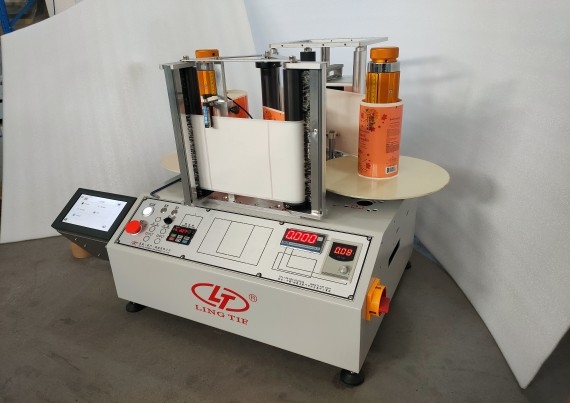

rewinder with thermal transfer overlay
Brand:
LingtieItem NO.:
LTD-450BPayment:
T/TPrice:
$5000Product Origin:
ChinaColor:
silver whiteShipping Port:
Xiamen portLead Time:
15days
Continuous printing on label ,it can print real time , date, , automatic shift code, automatic serial number, icon, barcode, batch count, QR code, self edit sheet, etc.
1) semi-auto tension control function and magnetic powder tension for option.
2 ) Diffrent sizes of shafts can be customized for paper cores.3 ) Label piece counters or meter counter functions available.
4 ) PLC &HMI all in one touch screen for option , simple operate and smart set the counting data.
5 ) Uniform Speed functon control the printing position of the label while rewinding
6)TTO Printing date,QR code,bar code,icon,sheet.
7) Suitable for label roll of PET, PVC, OPP, ribbon, aluminum foil paper, stickers etc.
Rewind machine
LTD-450B
Unwinder rolls diameter
400 mm
Rewinder rolls diameter
400 mm
Unwind shaft
76mm *300mm
Rewind shaft
76mm *300mm
Rewinding uniform speed
40 -120 meter / min
Max. Allowable weight
30 kg
Power
0.2 kw
Power voltage
220 V
Machine size
730 X760 X760 cm
HS CODE
8477800000
Rewind machine | |
LTD-450B | |
Unwinder rolls diameter | 400 mm |
Rewinder rolls diameter | 400 mm |
Unwind shaft | 76mm *300mm |
Rewind shaft | 76mm *300mm |
Rewinding uniform speed | 40 -120 meter / min |
Max. Allowable weight | 30 kg |
Power | 0.2 kw |
Power voltage | 220 V |
Machine size | 730 X760 X760 cm |
HS CODE | 8477800000 |
*The size for mechanical shafts and air shaft is from 1 "( 25 mm ) , 1.2 " ( 30 mm ) , 1.5 " (38 mm ) , 2 " (50 mm ) , 3 " (76 mm )to 6 " (152 mm ) and can be customized for different sizes of coreholders.
*TTO Ribbon printer , rugged compact single-box integrated coding machine ,controller and power supply .it is reliable and durable excellent coding .it is an ideal for small and medium ideal fexiible packaging coding equipment.
Printing head width 32mm, 53mm ,128mm for option ;
- Wax ribbon
- Resin ribbon
- Wax resin ribbon
-
Winding Rewinding Machine
A Winding rewinding machine is a machine designed for making the unwinding edge straight, slitting the big roll to small rolls. This machine also used for ink jet printing.
-
Automatic Rewinding Machine
A rewinding machine is a machine designed for making the unwinding edge straight, slitting the big roll to small rolls.
-
Doctoring Rewinding Machine
An Automatic rewinding machine is a machine designed for making the unwinding edge straight, remove dust on the film surface. This machine also used for ink jet printing.
-
Roll Rewinding Machine
This customized Doctoring Rewinding Machine used for the medical gauze rewinding under the consistent tension by a Japanese professional enterprise.
-
Rewinding laminating machine
Automatic Rewinding machine with laminating and protect film peel off function .
