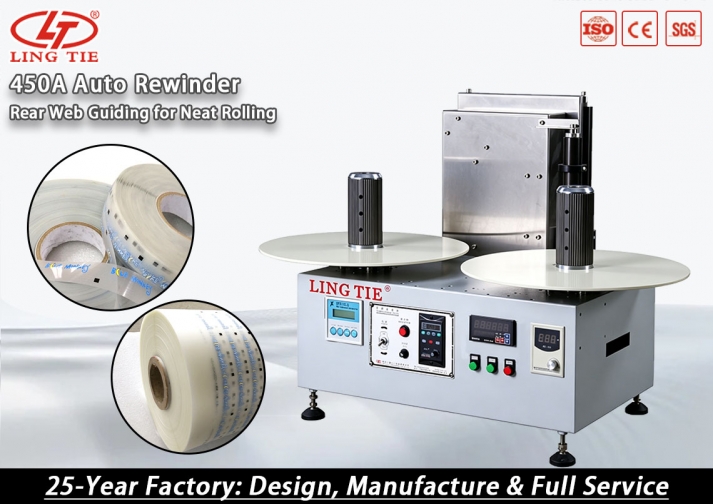

Automatic Label Rewinding Machine

Export 100 sets to all parts of the word every year, which most of our OEM label rewinder machine, adopt mechanical shafts or air shafts, change various core sizes, roll diameter and speed adjustment these units present the most versatile way to get the job done.

With a little bit of limited maintenance and smooth operation, all Lingtie Brand Label Counter Machines are designed for worry-free 24/7 running.

What kind of material can rewind on this web guiding label rewinding machine?

• Most of the roll material is OK, such as papers, films, non-woven fabric, foil, leather, thermal ribbon (the thickness can reach 0.025 mm).

How do I choose a deviation-correction Label Counter Machine? the below answers we should get

• what kind of material do you want to rewind or count on the label rewinding machine, decide to whether add to tension control or not
• what width of roll material is, determine to the shaft/axes height
• what kind of core diameter /the size of your label core do you have, standard sizes are 1" & 3."

The specification for reel to reel label rewinder machine

•  Max.roll diameter -- 450 mm
• Allowable weight  -- 40 kg
• Power supply -- 220 Volts /0.12 kW
• single phase
• JSCC motor drive
• dimension -- 660 x 400 x 580 mm
• Machine weight -- 40 kg

How many optional functions are there deviation-correction Table Top Rewinding Machine have?

•  air shaft
• mechanical shaft
• Two-stage speed
• Anti-dust eliminating
• Count number function
• Count meter function
• Double-side dust eliminating
• Static elimination brush
• Tension controller ( the below pic.)
• EPC-1000 (Edge Position Controller )
• Clockwise and counter-clockwise rewinding
