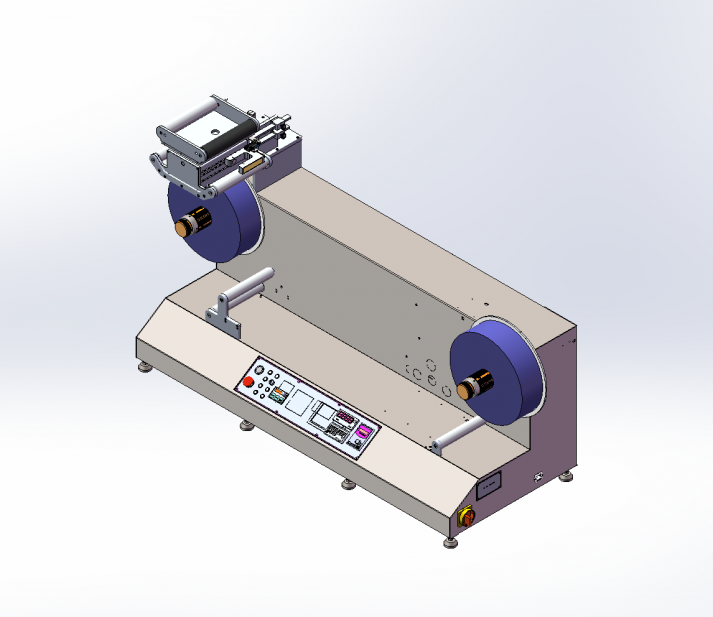

Customized label counter ,with constant rewinding speed .which with 1metre space between unwind and rewind shaft . enough space for installing inkjet printer , laser printer ,TTO printer . etc

Main Function and configuration :

• Piece counter
• meter counter
• Tension control
• Air expanding shaft of 3 inch (76mm) / 2inch /i.5inch /1inch etc.
  • Interchangeable shaft base ,easy and free to replace with shaft of all size  fit for Max. label width 200mm
• Contand Speed control
• Max.400mm diameter roll  can be loading freely
• Max.allowable loading weight 30kg
•

• Two motor running in both direction .
• Platform for Manually replacement for label. or  the middle space for customized for laser printer , inkjet printer etc installation .
• clamper to press the material

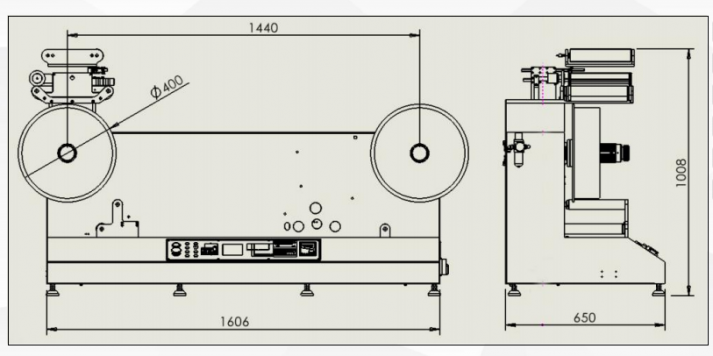

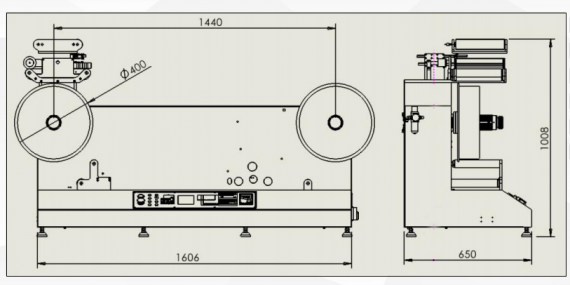

Specification

Max.Unwind diameter	400mm
Max.Rewind diameter	400mm
Allowable weight	30kg
Rewinding speed at beginning	1-100m/min
Power supply	220 V

Packing&Delivery

• Plywood box packing
• Lead time 15-20 days

How to select the right rewinding machine with counting function ?

1.What is the roll material and the weight ?

2.What is the roll max. diameter

3.What is the roll material width ?

4.What is the paper core inner diameter ?

5.Is the material transparent ?

6.What rewinding speed do you request ?
