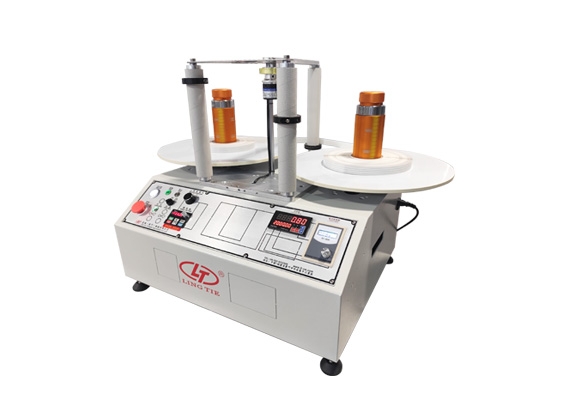

This is a simple rewinding machine with piece counter to check the quantity of label of a roll.

Label counter with 3 guide rollers to fit customer's special requirement .

Wind the roll material  from from side roller ,or wind it from the back side roller.

Main Function and configuration :

• Piece counter
• Tesion control
• Air expanding shaft of 3 inch (76mm) / 2inch /i.5inch /1inch etc.
  • Interchangeable shaft base ,easy and free to replace with shaft of all size
• Speed control and two stage of speed setting to ensure more precise counting
• Max.450mm diameter roll  can be loading freely
• Max.allowable loading weight 30kg

Shaft for option

Specification

Max.Unwind diameter	400mm
Max.Rewind diameter	400mm
Allowable weight 3	30kg
Rewinding speed at beginning	40m/min
Power supply	220 V

Packing&Delivery

• Wooden box packing
• Lead time 15-20 days

How to select the right rewinding machine with counting function ?

1.What is the roll material and the weight ?

2.What is the roll max.diameter

3.What is the roll material width ?

4.What is the paper core inner diameter ?

5.Is the material transparent ?

6.What rewinding speed do you request ?
