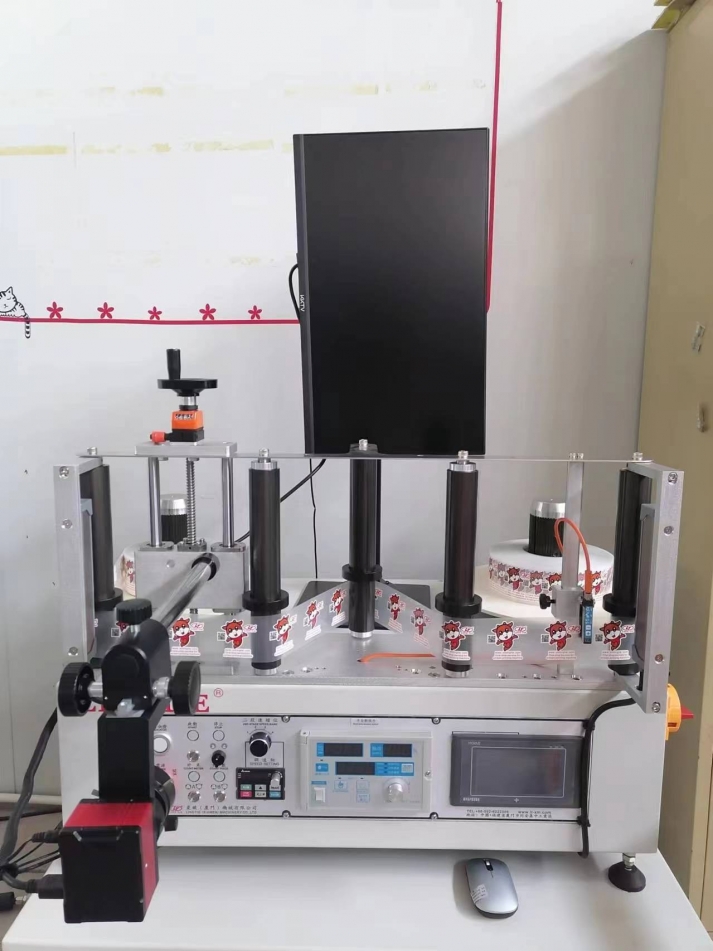

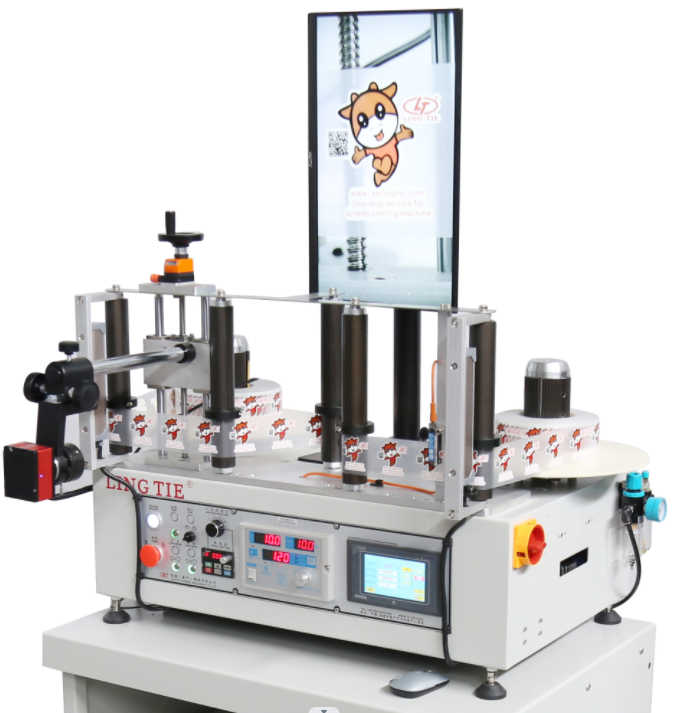

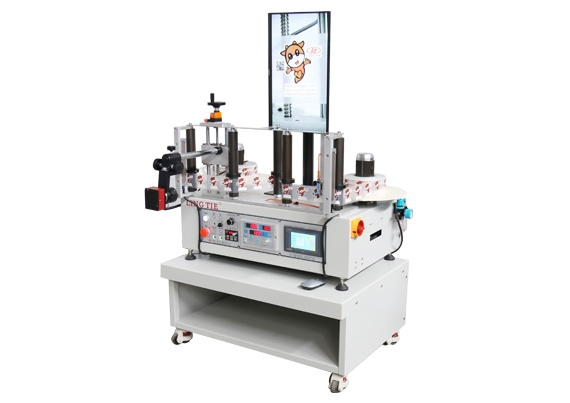

Paper label inspection counter rewinding machine

Paper label inspection counter rewinding machine .With electronic magnifier for better inspection while rewinding counting labels.

Brand:
Lingtie
Item NO.:
LTD-650A
Price:
$3500
Product Origin:
China
Color:
silver white
Shipping Port:
Xiamen port
Lead Time：
15days

contact now

Product Detail

B6pQ9yUp-zA

Machine main parameter:

Max.unwind & rewind diameter	450mm
Air shaft diameter (1",1.5”，2“.2.5“，3.” 4“.5”’6“ for option)	3 inch
Motor	0.2kw
Speed	0-120meter/min
Allowable weight	30kg
Machine weight	90kg
Machine size	L85W50H65 cm

Machine main function :

Two motor drive clockwise or counter clockwise
PLC touch screen
Label counting function
Two stage speed to esnsure machine count more precise
Electronic magnifier was assembled for manual checking label quality
Two electrostatic bar to remove static
Semi-automatic tension controller ,ensure the material runs in uniform tension
Frequency convertor ensure machine runs smoothly .
Interchangeable shaft base with auto air inlet
There are different diameter of air shaft for option . such as 1",1.5”，2“.2.5“，3.” 4“.5”’6“
