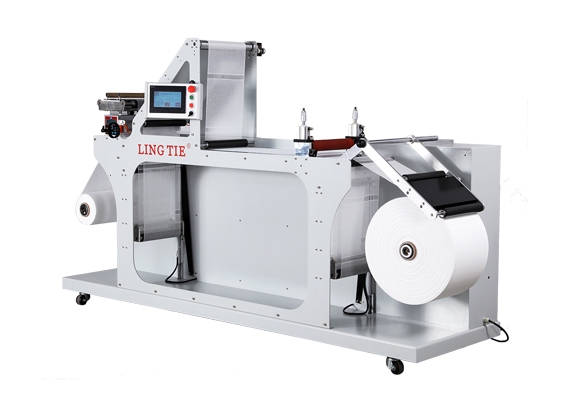

Slitting machine with 2 rewinding shafts
This slitting rewinder is ideal for manufacturers seeking efficiency, precision, and automation in their converting processes
Details
Paper label inspection counter rewinding machine
Paper label inspection counter rewinding machine .With electronic magnifier for better inspection while rewinding counting labels.
Details
Sheet screen printing machine
Semi-automatic screen printing machine, with servo motor driving , High-quality and precise lift motor for accurate printing and alignment.
Details

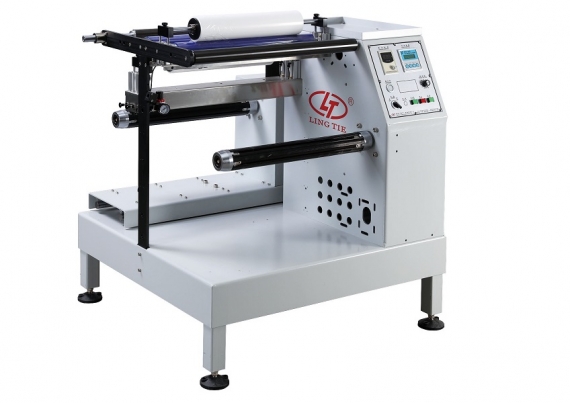

Rewinding slitting machine
Brand:
LingtieItem NO.:
LTD-600BPayment:
T/T, T/C, Paypal, Western Union...Price:
$10000/setProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
15 days after davanced payment
Overview
Quick Details
|
Place of Origin: |
Fujian, China |
Applicable Industries: |
Garment Shops, Building Material Shops, Manufacturing Plant..... |
|
After Warranty Service: |
Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location: |
None |
|
Showroom Location: |
None |
Brand Name: |
Lingtie |
|
Condition: |
New |
Warranty: |
1 year |
|
Model: |
LTD-600B |
Max.Paper width: |
600mm |
|
Allowable weight: |
70kg |
Max.diameter: |
550mm |
|
Power supply: |
220v/1w |
Net weight: |
330kg |
|
Gross weight: |
350kg |
Machine size: |
(L1000xW950xH1200)mm |
Packaging & Delivery
Selling Units: Single item
Port: Xiamen
Package Type: wooden boxes for sea transportation
Lead Time : 15 days after advanced payment.
Video Description
Product Description:

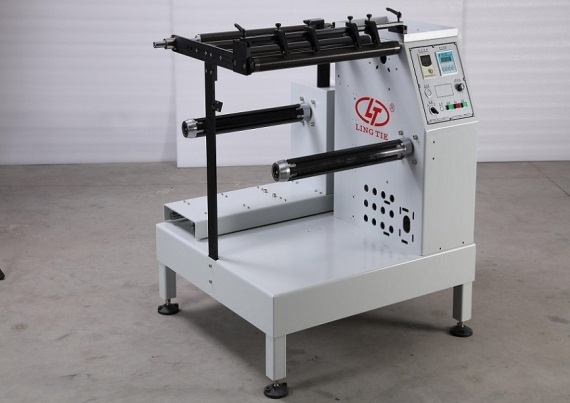

1. Unwinding and rewinding shaft is air shaft, 3 inch diameter, 600mm length.
2. Unwinding shaft is in the back of the machine, installed with a powder brake for tension control.
3. Rewinding shaft is in the front of the machine, installed with a motor for driving the roll.
4. The rewinding shaft can rotate in two directions, clockwise and counter clockwise.
5. Maximum unwind/rewind roll diameter 600mm.
6. There is a deviation rectifying system with sensor for web edge position control.
7. The machine can automatically stop when the roll in unwinding shaft is finish.
8. More functions are available for option to be added:
--slitting function (razor blade or circular blade)
--count meter function
--semi-automatic tension controller
--uniform rewinding speed controller
--film surface dust cleaning function
--corona treatment function
--rewinding roll press device
--laminating function
--splicing table
--lamp for label inspection
|
Model
|
LTD-600B
|
LTD-400B
|
LTD-700B
|
|
Max.Paper Width
|
600mm
|
400mm
|
700mm
|
|
Allowable Weight
|
70kg
|
50kg
|
70kg
|
|
Max Diameter
|
650mm
|
550mm
|
650mm
|
|
Power Supply
|
1.5kw
|
0.75kw
|
1.5kw
|
|
Tension
|
0-25N
|
0-25N
|
0-25N
|
|
Net Weight
|
330kg
|
290kg
|
360kg
|
|
Machine Size
|
(L1000xW1150xH1200)mm
|
(L1000xW950xH1200)mm
|
(L1000xW1250xH1200)mm
|
Application:

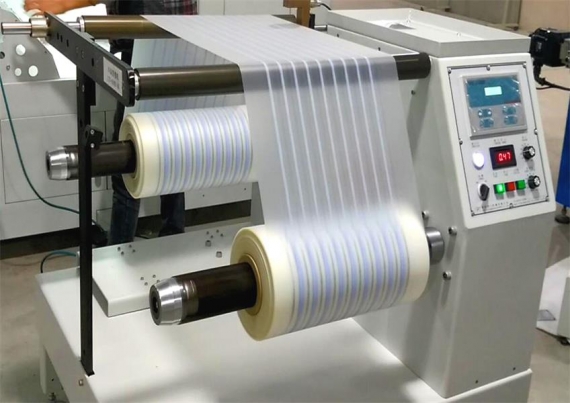

This automatic rewinding machine with web guide is widely used to rewind various soft materials in roll form, such as plastic film, paper, medical gauze, non-woven fabric , aluminum foil, etc.

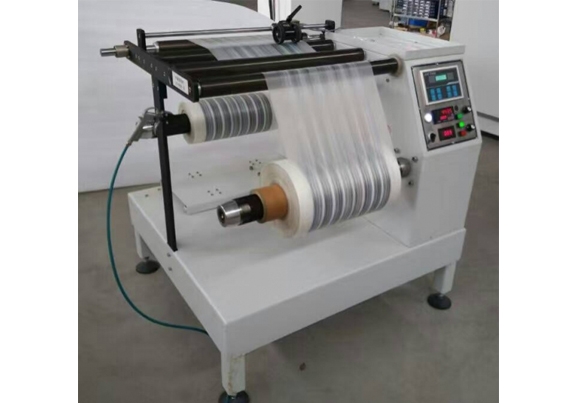

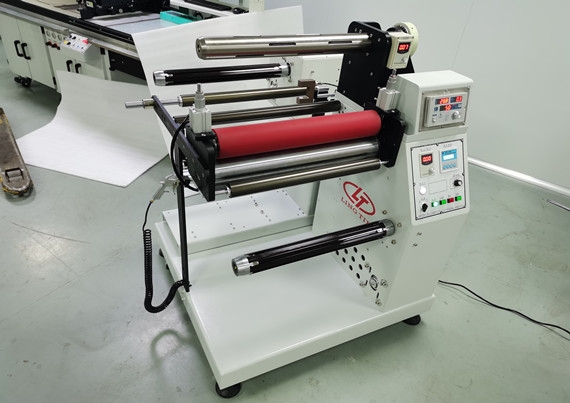

Machine with different configuration :
FAQ
Q:Are you manufacturer or trader?
A:We are manufacturer.
Q:Where is your factory location?
A:Our factory is located in Xiamen city of China, just opposite to Taiwan.
Q:How can I visit your factory?
A:Xiamen city have an international airport and high speed train station. Transportation to Xiamen from foreign countries or from other China cities is very convenient by train or by air.
Q:Can you arrange a pickup from airport or train station if l visit your factory?
A:Yes, we can go to airport or train station to pick you up.
Q:Can you design or modify the machine according to my requirement?
A:Yes, we can design or modify the machine according to your requirement.
Q:Where certificate do you have?
A:We have CE, SGS,ISO90001 and patent certificate.
Q:What is your payment term?
A:30% advance by T/T, 70% balance paid before shipment or L/C at sight.
Q:What is the delivery time after advance payment.
A:Usually we can deliver ordered machine 15-30 days after receiving advance payment.
Q:What is the warranty for your machine?
A:Our machine warranty is 12 months after installation. We also offer lifetime maintenance for our machine.
Q:Do you offer installation and training service for your machine?
A:Yes, we can go to your factory for machine installation and operator training.
