Label Counter film rewinding Machine

The automatic roll to roll Label Counter helps with counting and rewinding label conveniently and fast.
  • Brand:

    Lingtie
  • Item NO.:

    LTD-450 B
  • Payment:

    T/T
  • Price Range:1800 - 3500/$1
  • Product Origin:

    China
  • Shipping Port:

    Xiamen,China
Product Detail

Product Name:  Label Counter film rewinding Machine

The automatic Label Counter film rewinding Machine helps with counting the number of labels conveniently and fast, adopt different mechanical shafts or air shafts for various roll diameters, interchange various core sizes from 12mm to 152mm. fit for different label width from 10mm to 500mm.

*Application Range:

  Barcode Labels, booklet labels, coupon labels, digital labels, direct mail labels, etc. printed on paper, films, non-woven fabric, foil, thermal ribbon, and metalized material.



*PARAMETER FOR FILM REWINDING COUNTING MACHINE
Rewind machine Model
LTD-450A LTD-450B LTD-650A
Unwinder rolls diameter 450 mm 450 mm 650 mm
Rewinder rolls diameter 450 mm 450 mm 650 mm
Unwind shaft  76mm *300mm 76mm *300mm 76mm *300mm
Rewind  shaft  76mm *300mm 76mm *300mm 76mm *300mm
Rewinding speed 40 -120 meter / min 40-120 meter / min 40-120 meter/min
Max. Allowable weight 30 kg 30 kg 30 kg
Power 0.12 kw 0.2 kw 0.2 kw
Power voltage 220 V 220 V 220 V
Machine size 750 X400 X620 mm 750 X550 X620 mm 850X500X650mm
HS CODE 8477800000 8477800000 8477800000

Features:

1. The machine body adopts powder electrostatic spraying, which is environmentally friendly, non-solvent,durable and does not fall off the paint.

2.Adopt imported brand JSCC motor, reducer and stepless speed converter to ensure stable operation of the machine.

3.Semi-automatic tension controllor for option, the tension can be adjusted automatically following the roll diameter and thickness of material.

4.Adopt imported brands (Germany SICK\LEUZE\Japan PANASONIC\Taiwan FOTEK,Photoelectric meter / piece counting sensor, machine automatically stop when the number of meters/quantity is reached.

5. 2-stage speed slow speed control ensure accurate  counting.

6. Automatic inflatable inflatable shaft for option and interchangeable base, fast loading and unloading of materials, shafts of different sizes , easy to replace, not afraid of air leakage and more durable.

7.Optional PLC + man-machine (all-in-one)

8. Weguide deivce for option ,for trimly rewinding purpose .

9. Machine with simple structure ,also easy for modify for special application such as connecting with inkjet printer ,encoder etc。

  • Different function for option

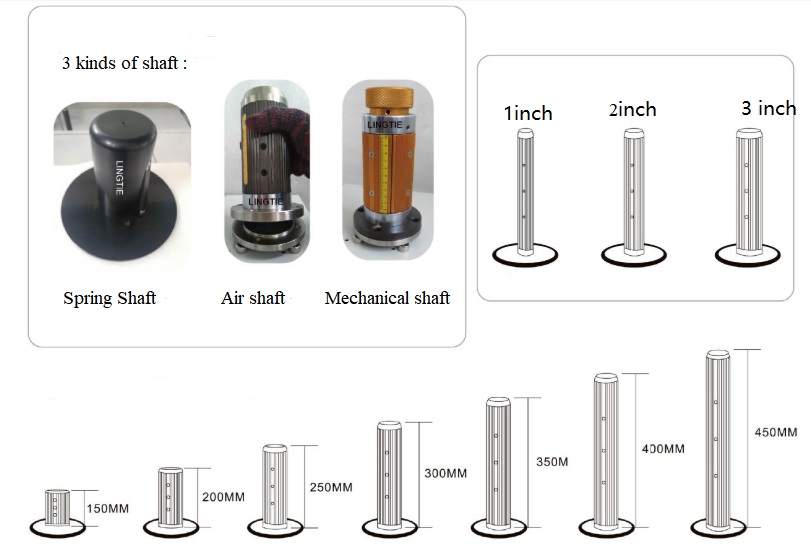

  • Different type of Shaft of various size for option






* How to select the right rewinding machine with counting function ?

1.What is the roll material and the weight ?

2.What is the roll max.diameter

3.What is the roll material width ?

4.What is the paper core inner diameter ?

5.Is the material transparent ?

6.What rewinding speed do you request ?
