Roll to Sheet Cutting Machine LTG-600
Brand:
LingtieItem NO.:
LTG-600Payment:
FOB XiamenProduct Origin:
ChinaShipping Port:
XiamenLead Time：
15days

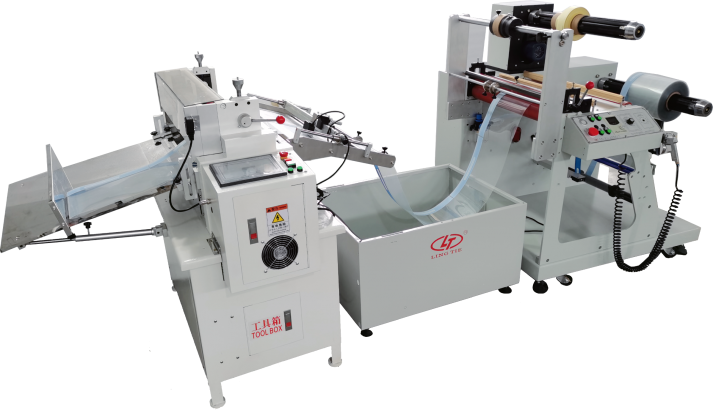

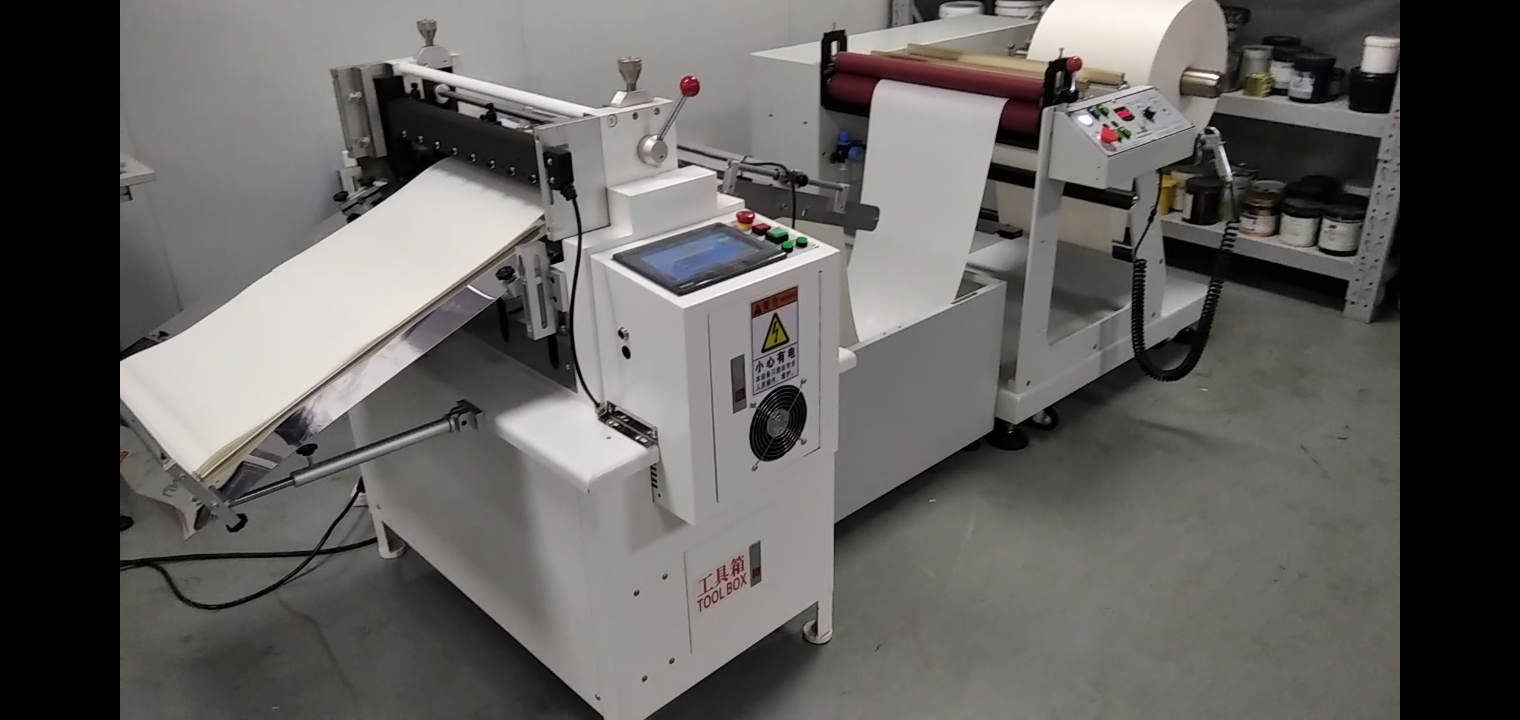

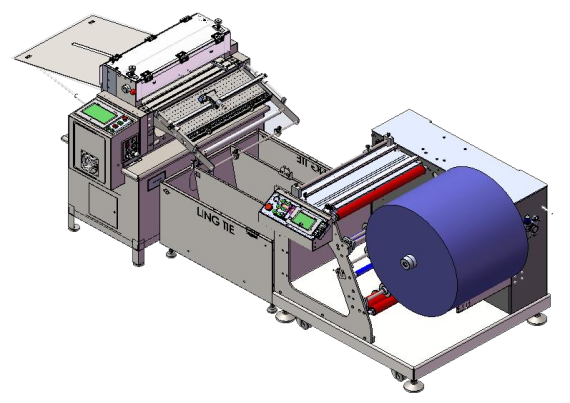

A roll-to-sheet cutting machine is designed to convert rolls materail into sheets with the needed size. The roll is unwound and the web is passed through the guillotine cutter, finally, the finished sheets with the desired length are collected on the plate . This roll to sheet cutting machine can handle max.width 600mm roll material .
This roll ro sheet cutting machien combined with 2 parts ,automatic cutter and automatic feeder
Machine Parameters ：
*Automatic cutter :
1 phase /220V
Model
LTG-600
Cutting Length
0.1-9999.9 mm
Allowable web width
0-600 mm
Power
1.7 kw
Voltage
Weight
280 kg
Machine size
L1400* W 1130 *H1100
1. This machine is suitable for cutting copper foil, aluminum foil, PET, PC, PVC, PCB, FPC, lithium battery film, flannel, metal foil and other roll materials.
2. This machine adopts servo motor to pull the material, imported PLC touch screen operation, can arbitrarily set the length, quantity, speed, and can be individually cut.
*Automatic feeder :
Model
LTC-600 E
Max. web width
620 mm
Power
0.5 kw
Powder supply
1 phase /220 V
Weight
380 kg
Machine size
L*1500 *W 1220 *H 1120 mm
1. Using Japanese MITSUBISHI inverter, precise speed control, stable start and stop, precise and durable.
2. Adopt imported brand JSCC motor, reducer and stepless speed change to ensure stable operation of the machine.
3. The feeder is controlled by imported photoelectric switch to avoid scratches. The feeding length can be adjusted automatically.
4. The electromagnetic tension adopts digital display, which can be adjusted at will, which is convenient for adjustment operation and data management.
5. Machine automatically stop when without material.
6. There is a loading and receiving platform, which is convenient for personnel to operate.
7. The unwind shaft is air expansion shaft, which only needs to be easily inflated, which is suitable for all kinds of people to operate.
8. The machine body is powder electrostatic spraying, which is environmentally friendly, solvent-resistant, durable and does not fall off the paint.
9. The machine is equipped with moving rollers, which is convenient for handling

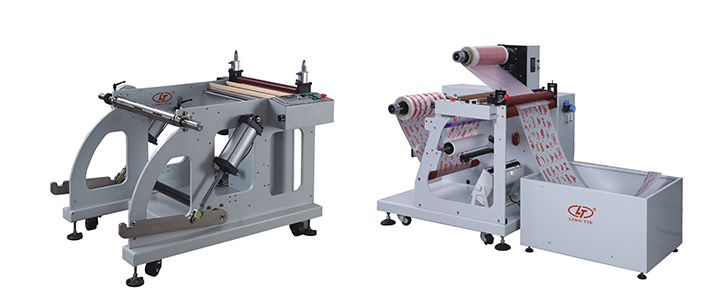

There are different feeding machine for option :
-
Roll to Sheet Cutting Machine
Automatic Roll to Sheet Cutting Machine widely used in Apparel, Beverage, Chemical, Commodity, Machinery, Hardware, Medical.
-
Automatic Roll to Sheet Cutting Machine
This printed paper roll to sheet cutting machine belongs to the post-press printing equipment, match with an ancillary apparatus like rewinding machine using.
-
roll to sheet punching cutting machine
Roll to sheet punching and cutting machine , combined with a unwinder ,a punching module, a sheeter .
-
Rewinding machine Shelf
support frame for Rewinding machine ,label counting machine.Machinery of scientific and rational design, balanced and reliable operation, the operationand maintenance convenience .
-
Auctomatic Roll To Roll Heat Press Machine
Overview Quick Details Place of Origin: Fujian, China Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant..... After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service Local Service Location: None Showroom Location: None Brand Name: Lingtie Condition: New Warranty: 1 year After-sales Service Provided: Free spare parts, Field installation, commissioning and training... Usage: Logo label heat transfer printing speed: 0-3600 Machine size: L680*W400*H745mm Weight: 80kg working table size: L1230*W400*H1500mm Printing size: 100*100mm Packaging & Delivery Selling Units: Single item Single package size: 150X50X150 cm Single gross weight:130.0 kg Package Type:wooden boxes for sea transportation Lead Time : 15 days after advanced payment. Video Description Apparel manufacturers, looking for alternatives to sew in t-shirt labels and garment tags have transitioned to tagless care labeling, which way can make the consumer more comfortable in their clothes and reduce costs. Speed, durability, and ease of use separate the Ling-tie Roll to Roll from all other roll label transfer presses. It is designed specifically for high production applications of tagless care labels. Short web paths, tool-less web guides, and quick release lower platens decrease change-over times and eliminate excessive waste. and its sensor adjustment is simple and capable of reading either side of the roll transfer. Max.printing area mm 100*100 Roll diameter OD mm 195 Roll diamter ID mm 25-76 Temperature celsius room temperature -200 Power v 1p 220 Air source mpa 0.4-0.6 Speed t/h 0-3600 Weight kg 80 Size mm L680*W400*H745 The Roll to Roll Label Press is designed for many customers' requested. The customer needs the Fully automatic roll to roll label press to reduce their cost, improve the output effectively. and they know Lingtie Machinery plant has the factory price to offer. For this machine specification: *Maximum and minumum width of transfer label? ————the range is 0-150mm *What is max diameter of label rolls? ————195mm *Max.temperature how many degree? ————200°C *Can we arrangment pressing time? ————Yes *Pressure system oil or air? ————Air *What is dimension of printing area? ————100x100mm,200x200mm,300x300mm,the size also can be custom made
